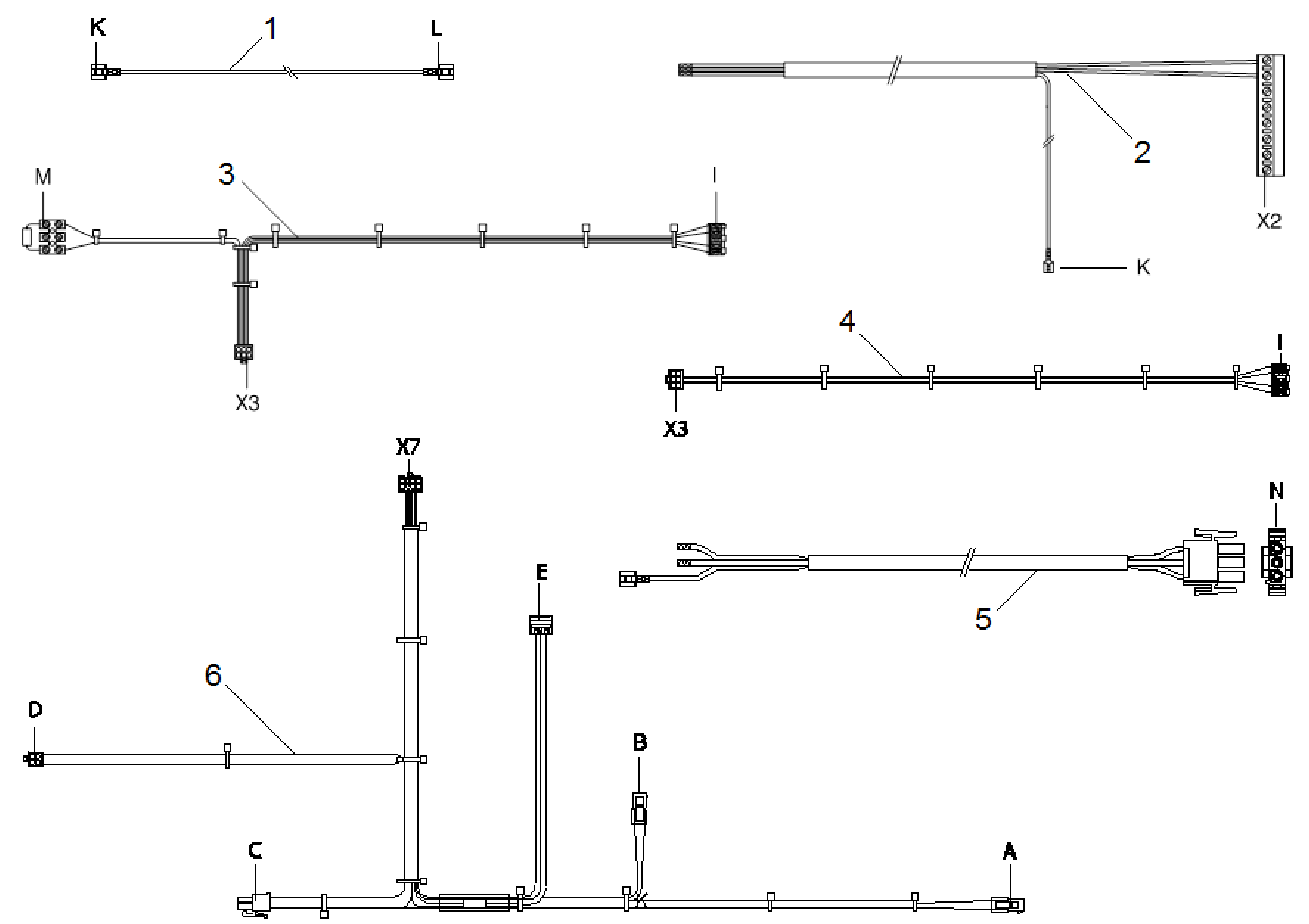

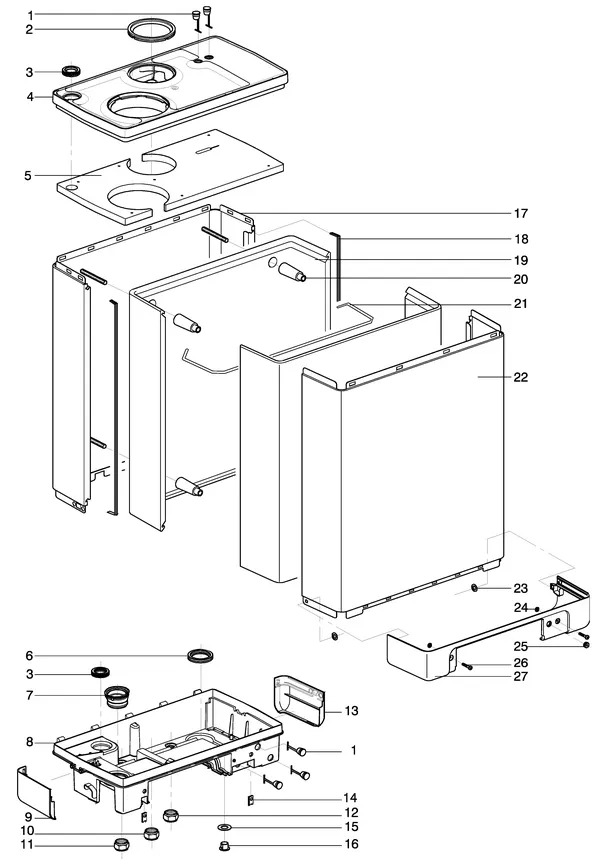

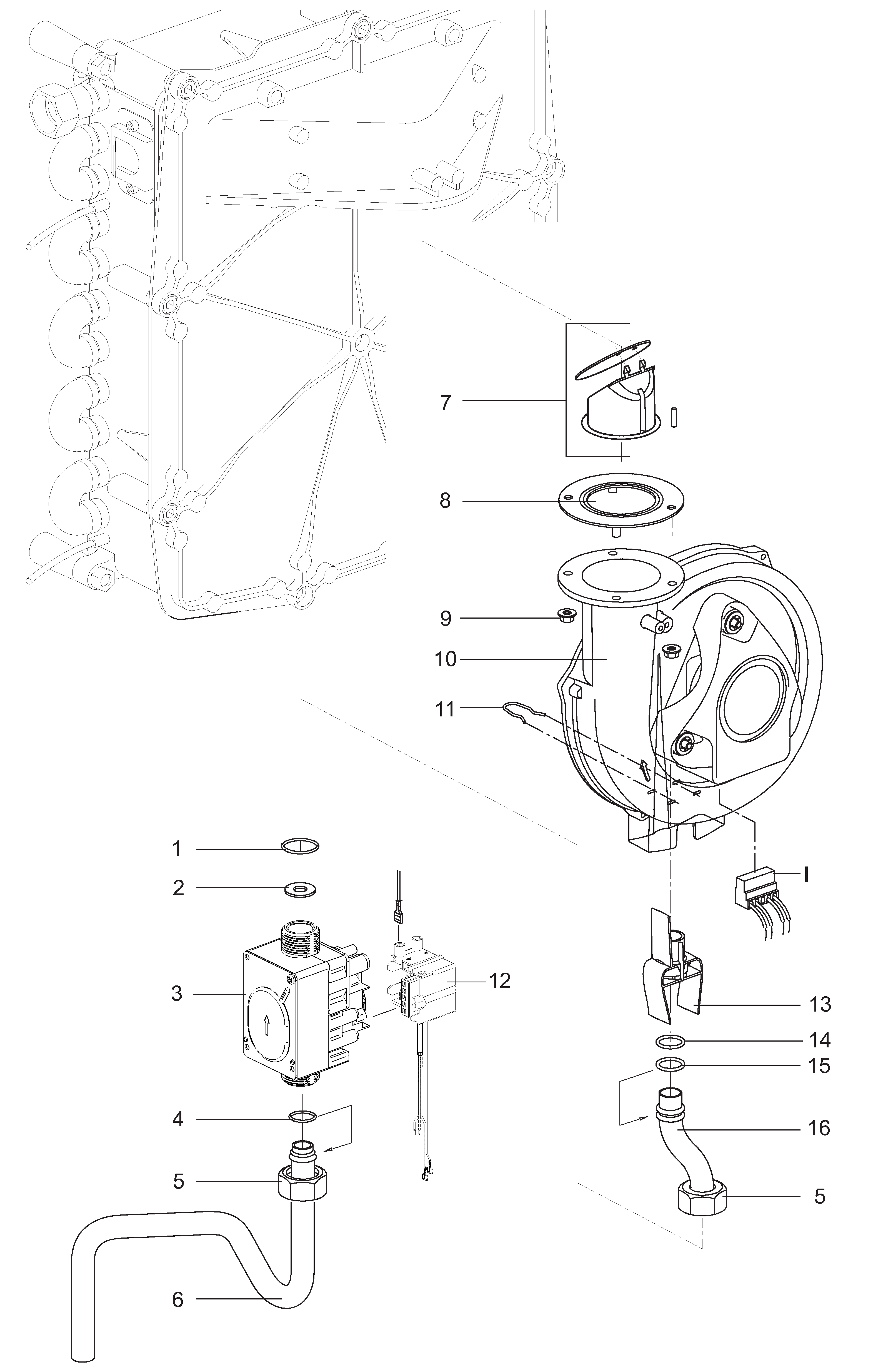

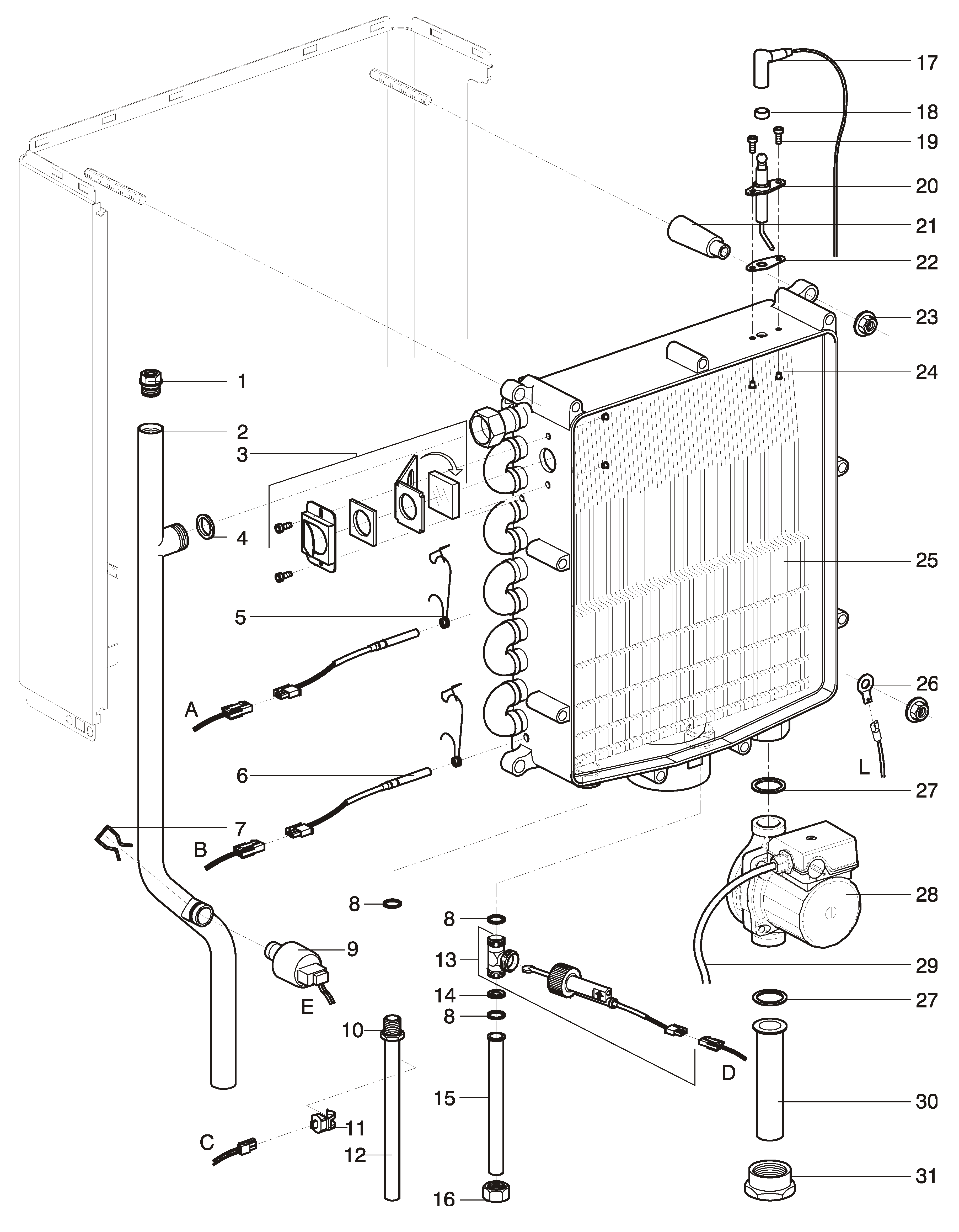

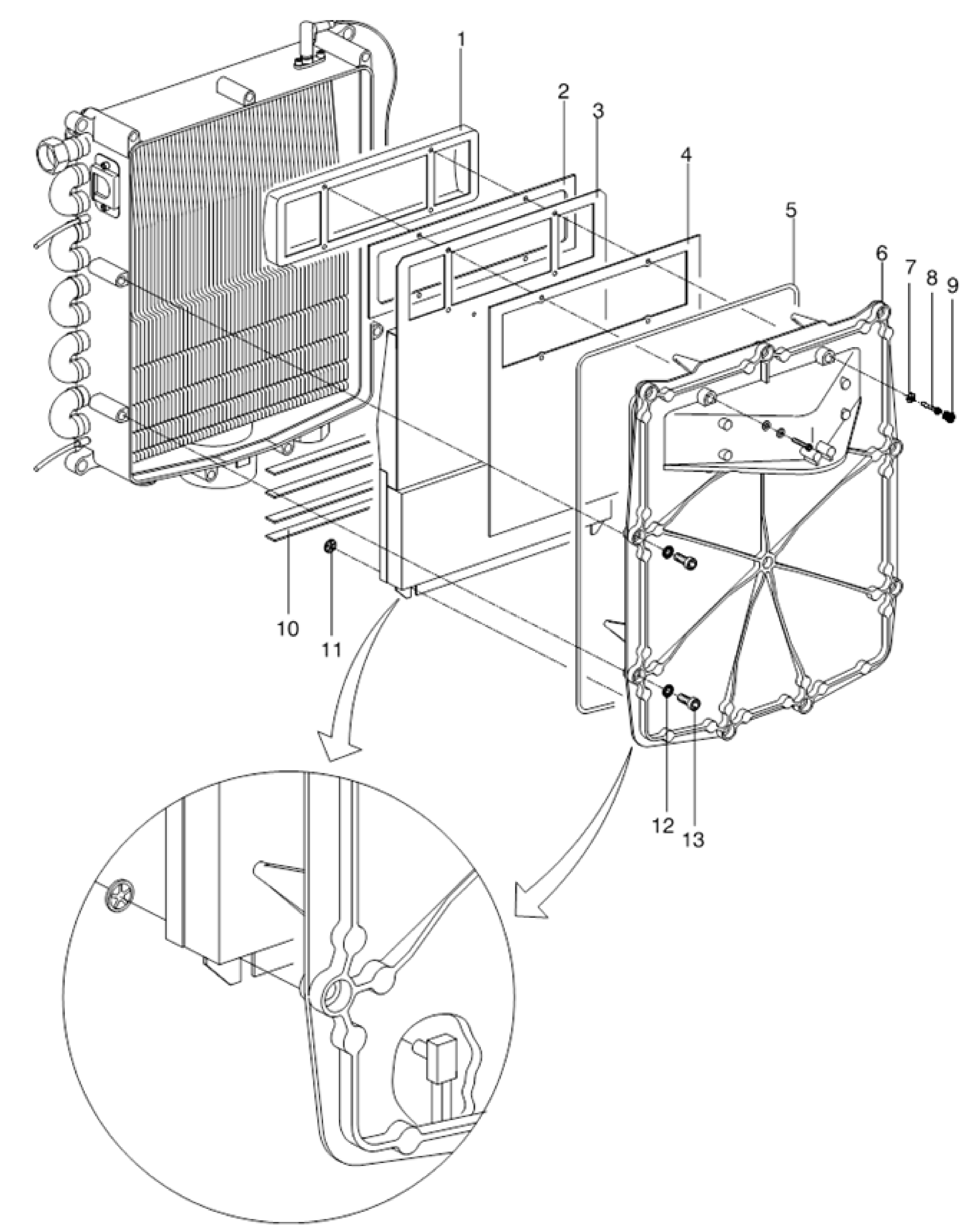

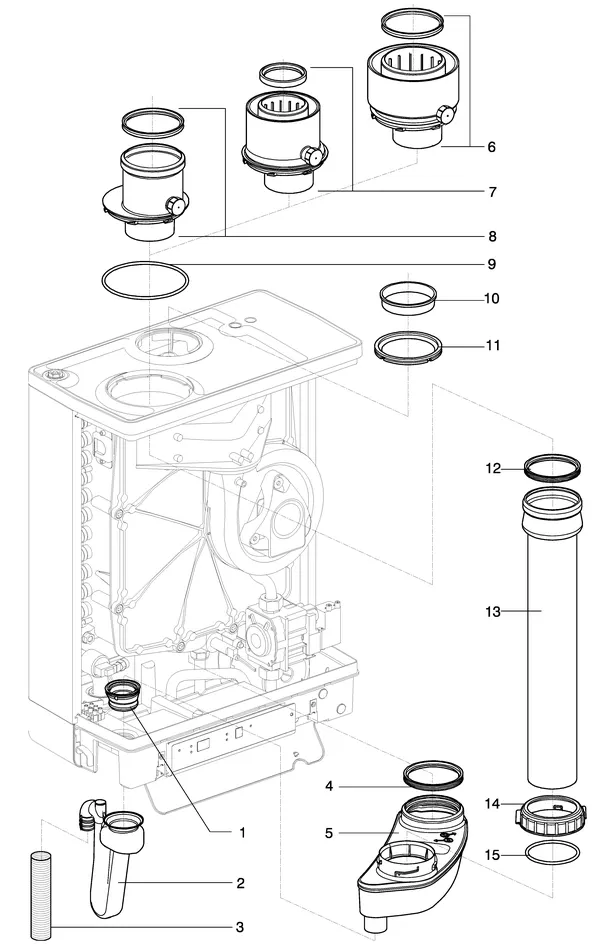

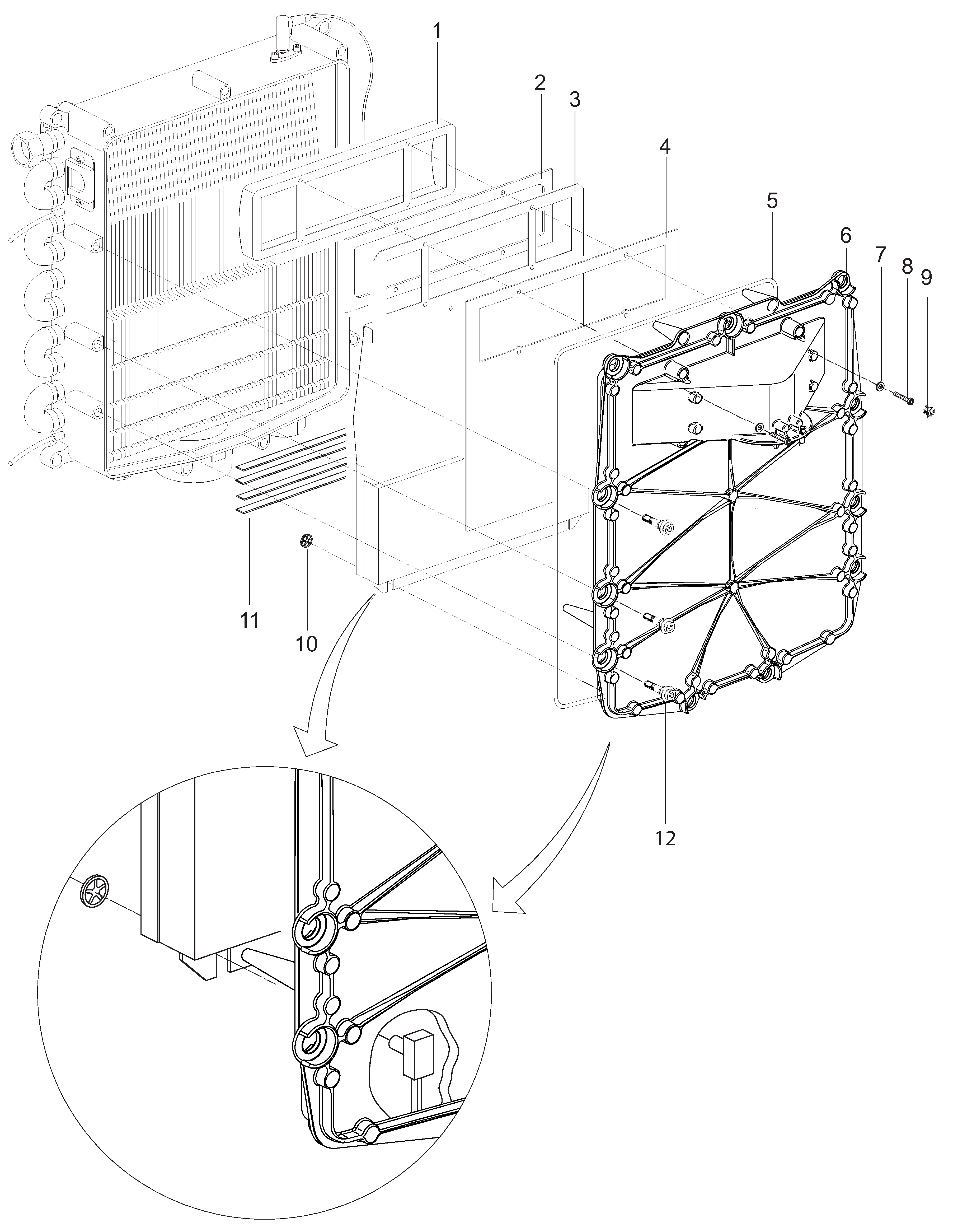

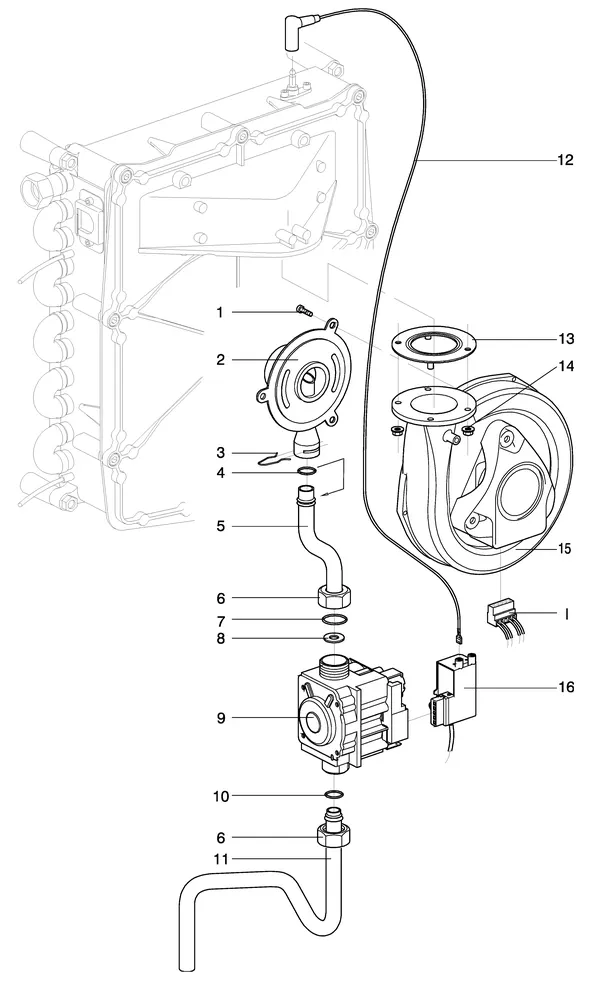

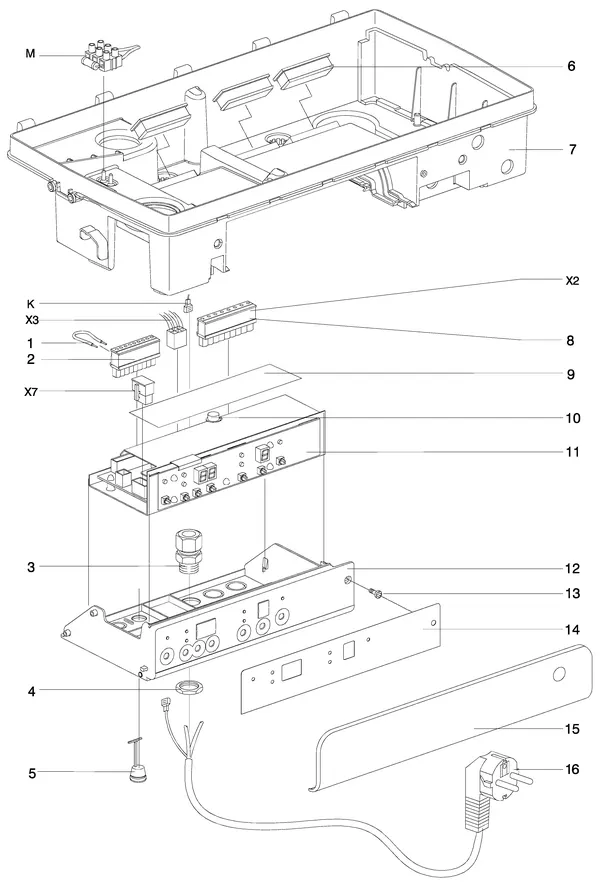

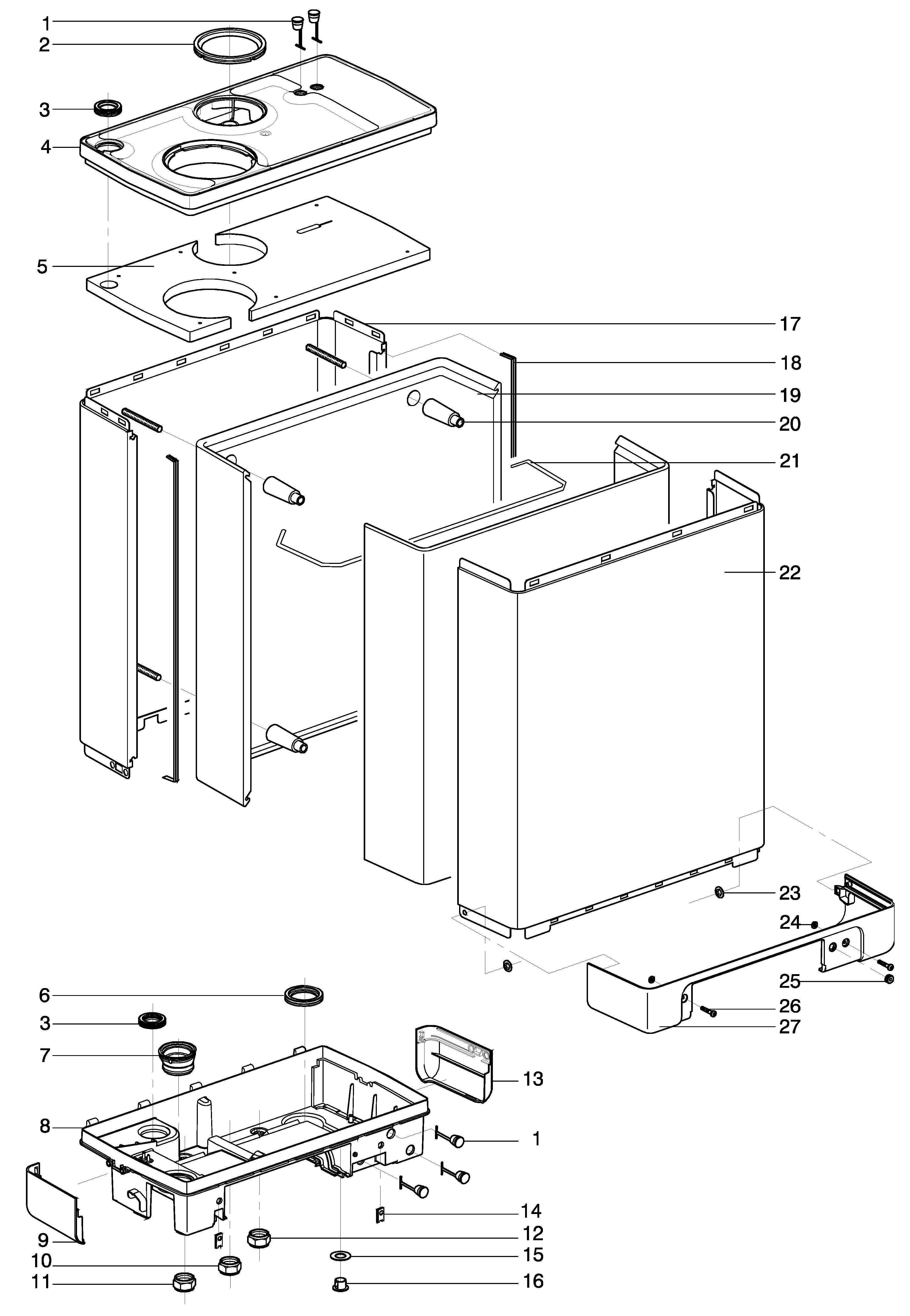

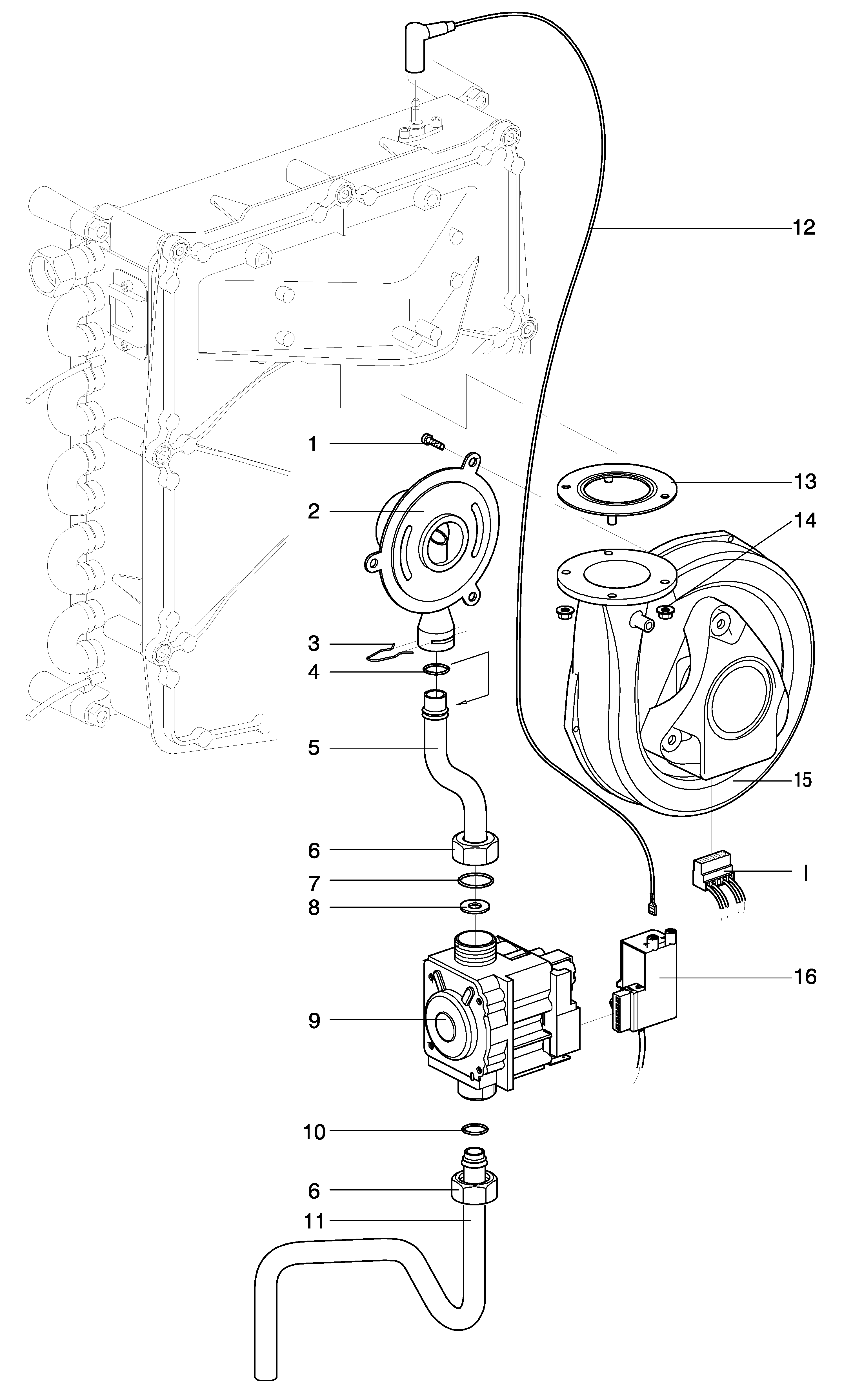

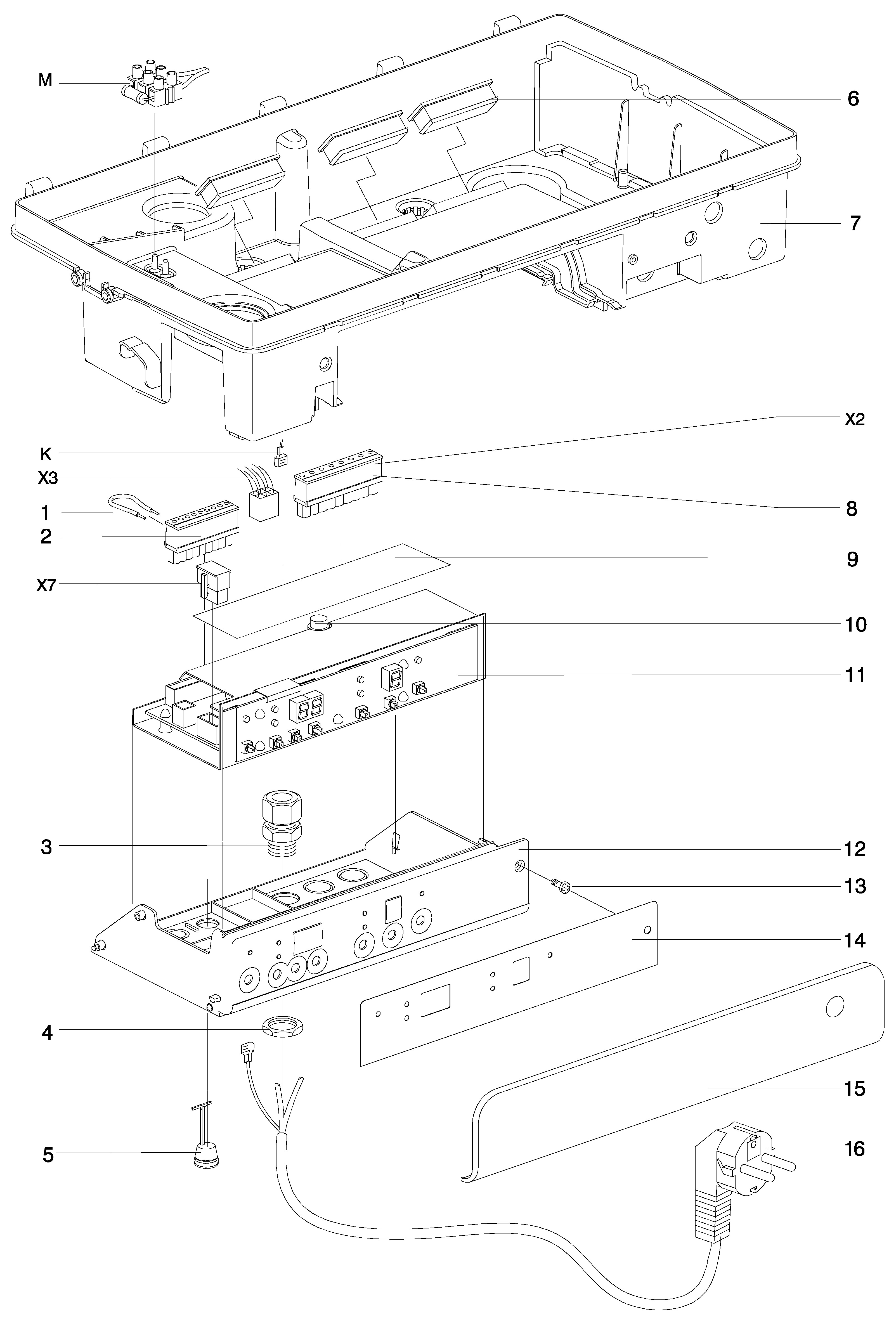

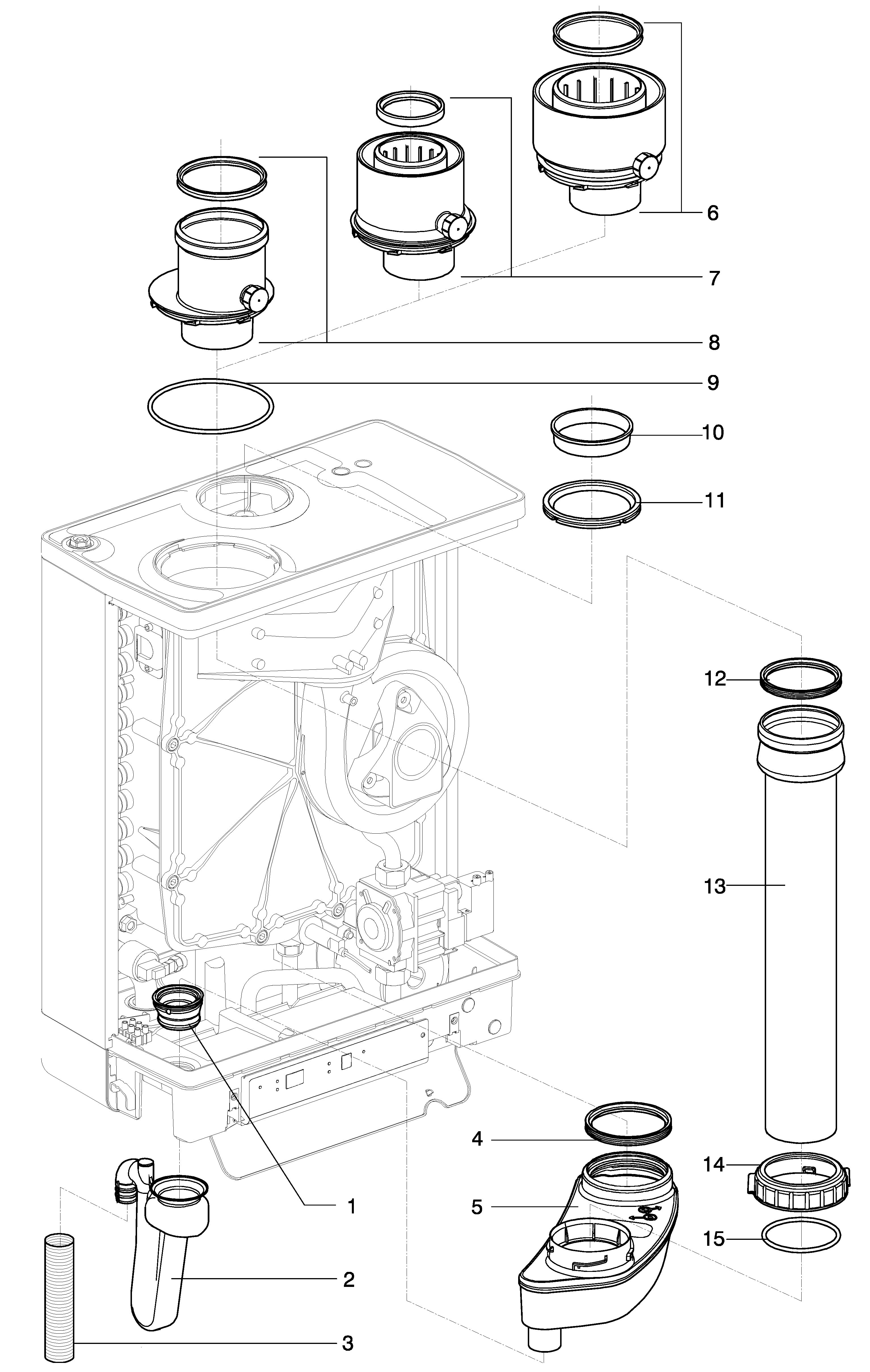

Intergas Kompakt Solo HRE 18 exploded tekening

Intergas Kompakt Solo HRE 18 onderdelen

Op zoek naar onderdelen voor de Intergas Kompakt Solo HRE 18? Hieronder staan alle 153 originele onderdelen met de bijbehorende exploded tekening, inclusief artikelnummer en prijs — direct te bestellen.

📐 Bekijk de interactieve exploded tekening →
OnderdeelArtikelnr.Prijs
Intergas druksensor CV clip serviceset8063340€37,51Bekijk & bestel
Intergas pomp Wilo Para 15-130/7-50/SC-12 (HRE t/m juli-2015)8069570€314,60Bekijk & bestel
Intergas NTC t.b.v. warmtewisselaar KK8063000€13,31Bekijk & bestel
Intergas afdichtring Ø 24 x Ø 20 x 1.5 mm8063140€0,61Bekijk & bestel
Intergas afdichtring pomp 1"8065070€0,91Bekijk & bestel
Intergas kunststof dop KK Ø 80 mm8063155€1,51Bekijk & bestel
Intergas tand veerring M88065190€0,30Bekijk & bestel
Intergas afdichting ontsteekpen8065201€1,21Bekijk & bestel
Intergas afdichtingsring ventilator8063166€3,03Bekijk & bestel
Intergas afdichtingsring8063187€9,68Bekijk & bestel
Intergas starlock snelborg 4 mm RVS8065245€0,30Bekijk & bestel
Intergas inbusbout M8 x 40 mm (per stuk)8065249€0,91Bekijk & bestel
Intergas afdichtingsring 76 mm8065256€3,33Bekijk & bestel
Intergas kijkglasset met houder KK8065204€8,47Bekijk & bestel
Intergas speednut 4.28065271€1,21Bekijk & bestel
Intergas ontsteekkabel NAC 1:1 l= 700 mm na 20068065292€17,55Bekijk & bestel
Intergas O-ring Ø 15 x 2 mm8063235€0,61Bekijk & bestel
Intergas O-ring Ø 19 x 2 mm8063237€0,61Bekijk & bestel
Intergas ventilator Torin laag model8063292€203,28Bekijk & bestel
Intergas stuwstrip (4 stuks per ketel nodig)8063294€3,33Bekijk & bestel
Intergas ventilator kabel HRE8063300€14,52Bekijk & bestel
Intergas condensbak8063310€53,24Bekijk & bestel
Intergas O-ring Ø 68 x 4 mm condensbak8063324€1,82Bekijk & bestel
Intergas lippenring DN70 x 82 mm8063325€3,33Bekijk & bestel
Intergas ribbelslang DN25 x 21 l= 600 mm8062727€2,42Bekijk & bestel
Intergas sifon HRE8062732€10,89Bekijk & bestel
Intergas afdichtring 21.5/15.5 vlak gas8062736€0,91Bekijk & bestel
Intergas pakking voorplaat / isolatiebak8062739€9,08Bekijk & bestel
Intergas tule sifon8062746€3,63Bekijk & bestel
Intergas rookgasklep set (optioneel) incl. afdichtring en flensmoer8065345€18,15Bekijk & bestel
Intergas adapterset Ø 60/100mm0510112€68,51Bekijk & bestel
Intergas veer branderbout8060521€0,96Bekijk & bestel
Intergas ontluchter 3/8"8063215€3,93Bekijk & bestel
Intergas aansluitkabel 3x1 mm met haakse stekker l= 2 m8063257€8,47Bekijk & bestel
Intergas rookgaskoker klein8063309€30,25Bekijk & bestel
Intergas wartelmoer rookgaskoker8063312€10,29Bekijk & bestel
Intergas O-ring 115 x 4 mm rookgasafdichting8063323€3,33Bekijk & bestel
Intergas bodem HRE8062734€53,24Bekijk & bestel
Intergas wartelmoer kunststof geel8065446€1,82Bekijk & bestel
Intergas bodemrand HRE compleet8063337€13,92Bekijk & bestel
Intergas O-ring Ø 6 x 1.5 mm siliconen8065472€0,61Bekijk & bestel
Intergas ventilator set HRE/Eco8065478€203,28Bekijk & bestel
Intergas ontsteekunit (Siemens) TQG43.A2109 SMART HRE na 6/20118060034€22,39Bekijk & bestel
Intergas branderautomaat IC3 verbeterde versie Kompakt HRE RF28069012€434,39Bekijk & bestel
Intergas ombouwset propaan t.b.v. HRE 24/18 tunnel versie na 20118069015€36,30Bekijk & bestel
Intergas gasblok (vervangingset) Smart HR/HRE/HReco (was 8060023)8069074€219,01Bekijk & bestel
Intergas gasblok (vervangingset) Smart Prestige (was 8060023)8069075€219,01Bekijk & bestel
Intergas inbusbout M8 x 40 mm met flens8069088€1,21Bekijk & bestel
Intergas vervanging set voorplaat HRE klein8066005€180,29Bekijk & bestel
Intergas HRE HReco ontsteekpen vervangingsset8066010€14,52Bekijk & bestel
Intergas afdichting Viton voorplaat klein 660 mm zwart HRE 24 incl. vlakgasring 21.5 / 15.58063338€10,29Bekijk & bestel
Intergas service set brander Bekaert8062492€243,21Bekijk & bestel
Intergas rookgasadapter 80/80 mm8063341€55,66Bekijk & bestel
Intergas pomp Wilo Para 15-130 /6 PWM (HRE vanaf aug-2015)8069566€292,82Bekijk & bestel
Intergas onderhoudsset voor de CW3 toestellen3299061€31,46Bekijk & bestel
Intergas plaatschroef T20 RVS verzonken8065473€0,30Bekijk & bestel
Rewind gereviseerde ventilator Kombi Kompakt HR(E)(Eco)8930245€203,28Bekijk & bestel
Rewind gereviseerde ventilator Kombi Kompakt HR(E)(Eco)8930246€203,28Bekijk & bestel
Intergas vulaftapkraan 1/2"8060730€26,62Bekijk & bestel
Intergas borgveer NTC warmtewisselaar8065255€1,21Bekijk & bestel
Intergas insert moer M48065203€0,61Bekijk & bestel
Intergas flensmoer M5 met kartelrand8063231€0,61Bekijk & bestel
Intergas inbusbout M4 x 10 mm8063232€0,30Bekijk & bestel
Intergas afwaterstop8063284€0,91Bekijk & bestel
Intergas isolator ontsteekpen8063273€0,91Bekijk & bestel
Intergas propaanset (1:1) KK22 vanaf 2006 combi en solo8065335€36,30Bekijk & bestel
Intergas displayvenster HRE8063304€12,10Bekijk & bestel
Intergas onderaansluitset voor HRE kort0510072€190,60Bekijk & bestel
Intergas deksel8062733€67,76Bekijk & bestel
Intergas bovenaansluitset voor HRE 24/180510074€310,39Bekijk & bestel
Intergas adapterset Ø 80/125mm0510114€68,51Bekijk & bestel
Intergas schermplaat kort HRE0510070€38,90Bekijk & bestel
Intergas klemring Ø 22mm8064091€1,82Bekijk & bestel
Intergas stuwstrip 12/22kW Kompakt8065226€2,12Bekijk & bestel
Intergas connector 9-polig 5 mm 24V8065295€8,47Bekijk & bestel
Intergas zelfborgende moer M88063218€0,30Bekijk & bestel
Intergas veer8063234€0,91Bekijk & bestel
Intergas wartelmoer 3/4"x 0198063238€2,12Bekijk & bestel
Intergas Plastite 45° laagbolkopschroef Ø3.5 x 10 mm8063252€0,30Bekijk & bestel
Intergas viltring afwaterstop8063283€0,61Bekijk & bestel
Intergas glaszekering 3,15A T F48062717€1,51Bekijk & bestel
Intergas pompkabel HRE8063302€12,71Bekijk & bestel
Intergas retourbuis HRE8063303€7,87Bekijk & bestel
Intergas zijkap bodemrand links8063306€3,93Bekijk & bestel
Intergas zijkap bodemrand rechts8063307€3,93Bekijk & bestel
Intergas branderautomaat/displayhouder8063308€14,52Bekijk & bestel
Intergas gasmengbuis HRE klein8063314€26,62Bekijk & bestel
Intergas gastoevoerbuis HRE8063317€17,55Bekijk & bestel
Intergas borgveer druksensor8063321€1,82Bekijk & bestel
Intergas NTC kabel solo HRE8062720€15,13Bekijk & bestel
Intergas antiverliesring8062722€0,30Bekijk & bestel
Intergas sluitschroef mantel8062724€0,30Bekijk & bestel
Intergas starlock8062725€0,91Bekijk & bestel
Intergas dop Ø 12,5 mm met anker8062726€0,61Bekijk & bestel
Intergas pompmoer 1" HRE8062729€6,05Bekijk & bestel
Intergas venturi8062730€32,67Bekijk & bestel
Intergas bevestigingsveer isolatie8062735€1,51Bekijk & bestel
Intergas isolatie mantel klein8062737€25,41Bekijk & bestel
Intergas isolatie boven8062738€14,52Bekijk & bestel
Intergas tule displayvenstersl8062741€0,61Bekijk & bestel
Intergas tule aanvoerbuis8062742€3,03Bekijk & bestel
Intergas tule pomp8062744€3,03Bekijk & bestel
Intergas kabeldoorvoer8062745€1,51Bekijk & bestel
Intergas sticker display HRE8062747€12,71Bekijk & bestel
Intergas klemring Ø 15mm8065354€1,21Bekijk & bestel
Intergas overstort8065388€21,78Bekijk & bestel
Intergas inlaatcombinatie 8bar15 x 15 mm knel8065392€76,23Bekijk & bestel
Intergas wartel M16 x 1,5 mm8065419€1,82Bekijk & bestel
Intergas HRE (A)/HRECO montagebeugel kort0510079€66,62Bekijk & bestel
Intergas ophangstrip8063333€5,45Bekijk & bestel
Intergas isolatiebak HRE 24/188065453€89,54Bekijk & bestel
Intergas torxschroef t.b.v. trafo Siemens gasblok8060031€0,61Bekijk & bestel
Intergas afvoergoot onderaansluitset HRE8065467€20,57Bekijk & bestel
Intergas moer 15mm knel zoekend 3 stuks8069008€5,14Bekijk & bestel
Intergas aanvoerbuis klein (voor 2015)8069050€67,76Bekijk & bestel
Intergas gas lucht module 4068069063€32,67Bekijk & bestel
Intergas gasmengbuis klein L=518069065€26,62Bekijk & bestel
Intergas connector 8 polig 7,5 mm 230V8069068€8,47Bekijk & bestel
Intergas ventilatorkabel HReco8069071€14,52Bekijk & bestel
Intergas aardgasset gasdoseerring 645 aardgas G25.38065018€36,30Bekijk & bestel
Intergas sluitring M4 carrosserie8069142€0,30Bekijk & bestel
Intergas gas ombouwset G31 (insert 435)8060374€36,30Bekijk & bestel
Intergas pakking brander8063165€3,03Bekijk & bestel
Intergas zekering F1 2AT8062721€1,82Bekijk & bestel
Intergas afdicht profiel L=785 mm 8779178065268€2,12Bekijk & bestel
Intergas warmtewisselaar klein Solo8065012€566,28Bekijk & bestel
Intergas veer aansluitnippel 22 komp. 8733778069206€1,21Bekijk & bestel
Intergas veer aansluitnippel 15 komp. 8733878069207€1,21Bekijk & bestel
Intergas pomp vervangingset Shimge8069582€263,78Bekijk & bestel
Intergas gas ombouwset H25.3 (insert 435)8060375€36,30Bekijk & bestel
Intergas vervangingsset gas-lucht module 4358060378€36,30Bekijk & bestel
Intergas aarddraad na 20068063268€0,91Bekijk & bestel
Intergas aardklem8063221€1,51Bekijk & bestel
Intergas achterbak klein8063298€64,13Bekijk & bestel
Intergas afstandbus8062743€3,03Bekijk & bestel
Intergas consoleplaat8069023€18,15Bekijk & bestel
Intergas cv-leiding bovenaansluiting8069030€22,99Bekijk & bestel
Intergas doorverbinder geel8063274€0,61Bekijk & bestel
Intergas gaskraan15 x 15 mm knel +nippel8069026€29,04Bekijk & bestel
Intergas gasleiding bovenaansluiting8069032€25,41Bekijk & bestel
Intergas houtdraad bout M8 x 45 mm8065347€0,30Bekijk & bestel
Intergas moer 22mm knel zoekend 2 stuks8069009€3,33Bekijk & bestel
Intergas moer M16 x 1.58065418€0,61Bekijk & bestel
Intergas nippel8064093€9,68Bekijk & bestel
Intergas nippel aanvoer8060527€10,89Bekijk & bestel
Intergas nippel tapwater8060526€6,66Bekijk & bestel
Intergas plug U-10 4 stuks8065349€0,30Bekijk & bestel
Intergas rechte koppling 15 x 15 mm knel8069025€7,26Bekijk & bestel
Intergas sluitring M8 2 stuks8065348€0,30Bekijk & bestel
Intergas sticker (aansluit bedrading) Solo8062749€1,82Bekijk & bestel
Intergas tapwaterleiding bovenaansluiting8069031€23,60Bekijk & bestel
Intergas T-stuk 22 mm knel x 1/2" binnendraad x 22 mm knel8069024€18,15Bekijk & bestel
Intergas T-stuk 1/2" x 22 x 22 mm8065329€19,97Bekijk & bestel
