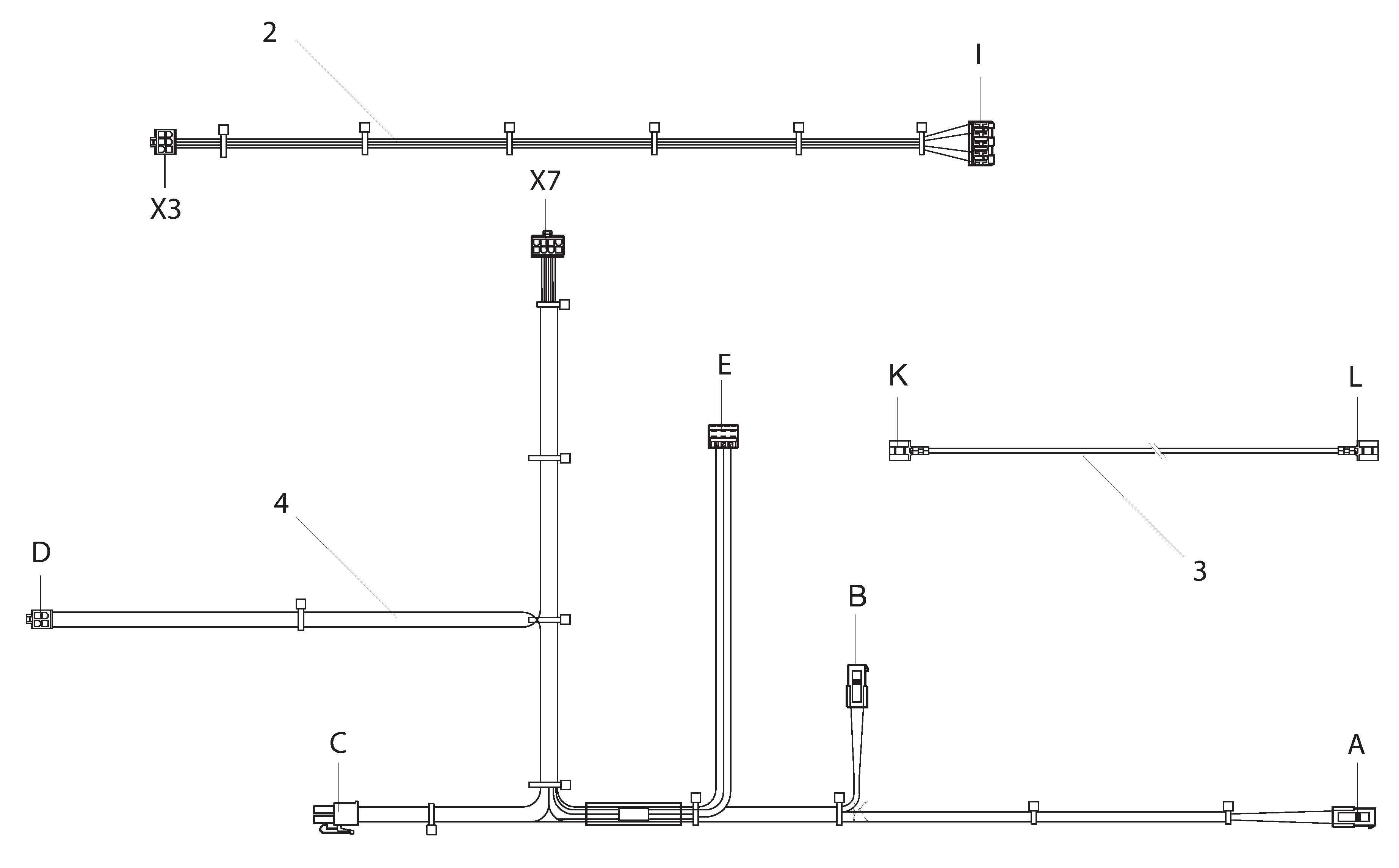

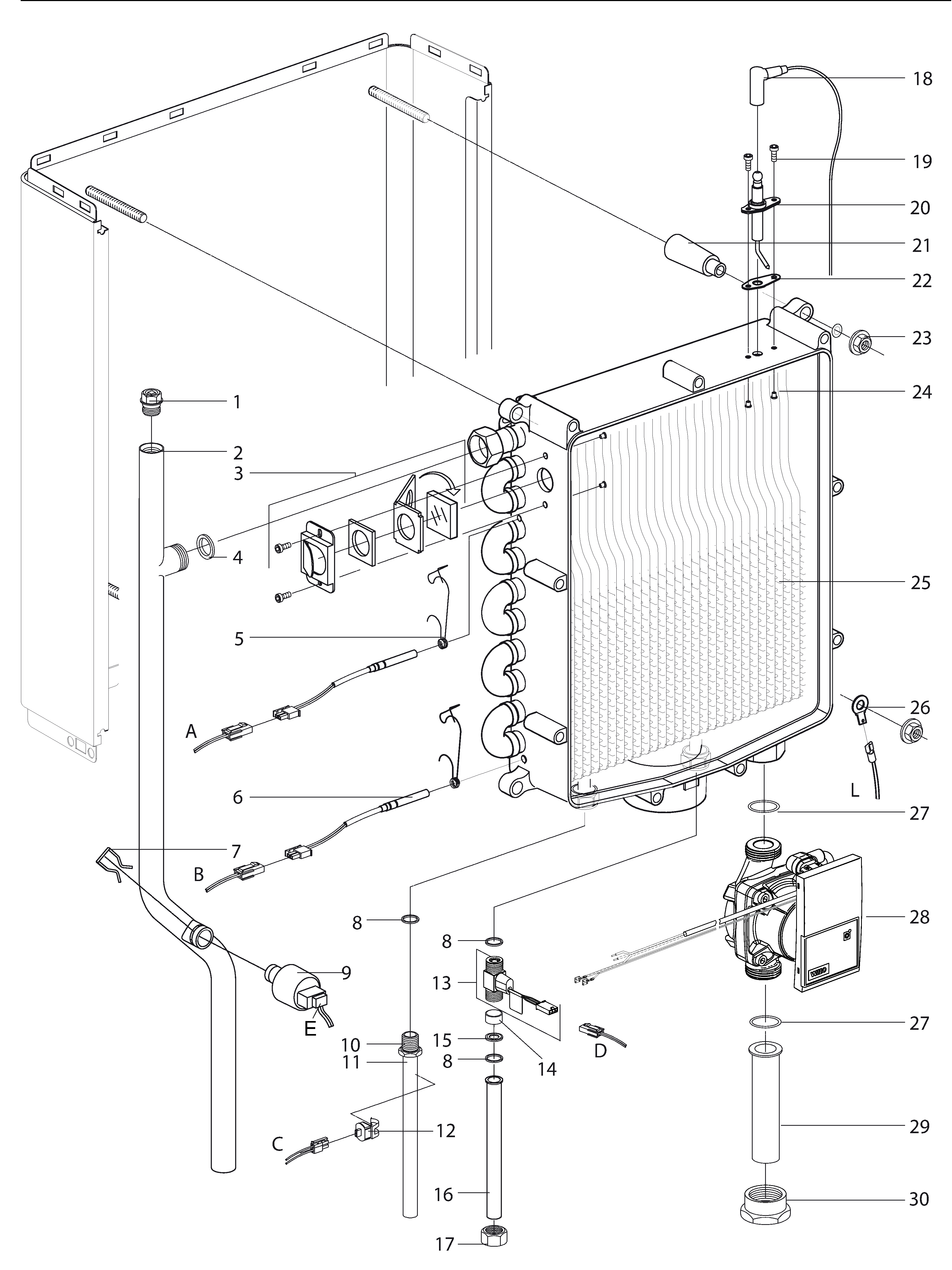

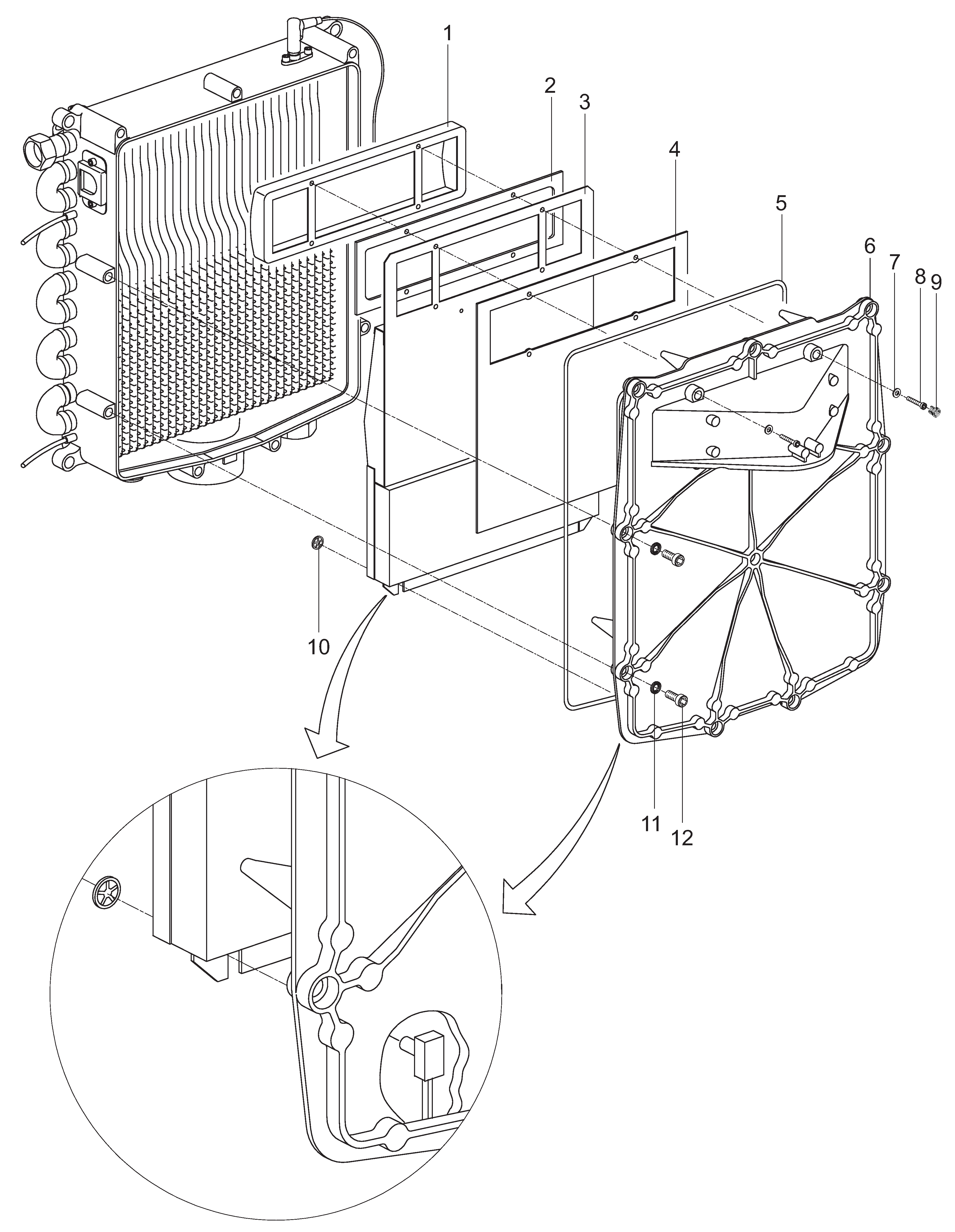

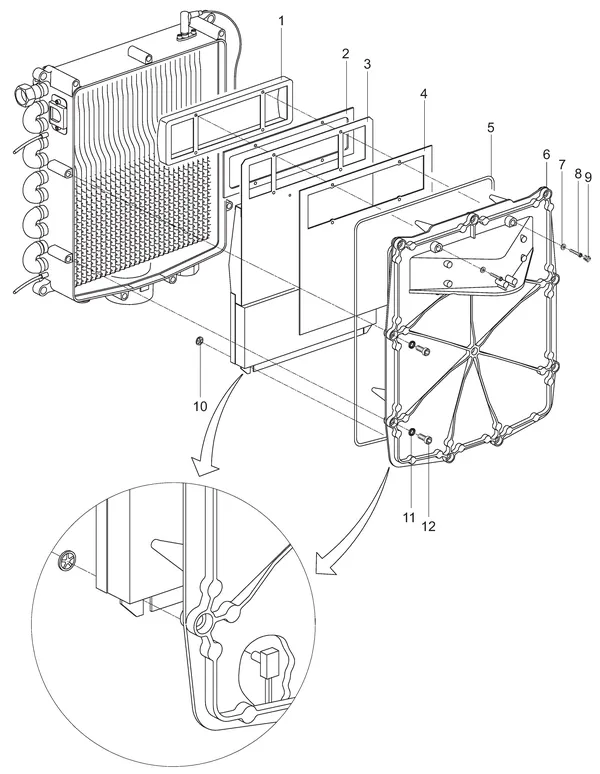

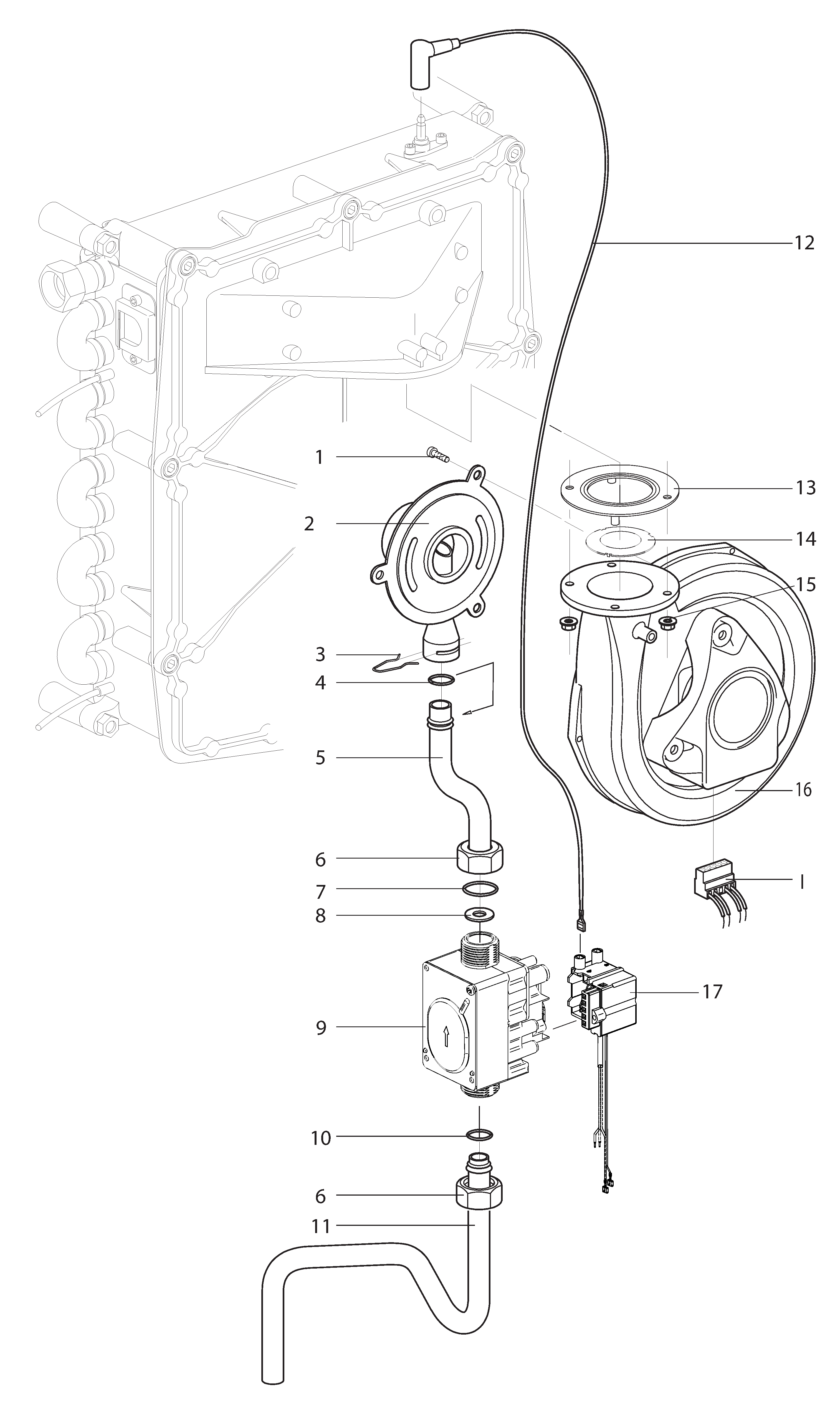

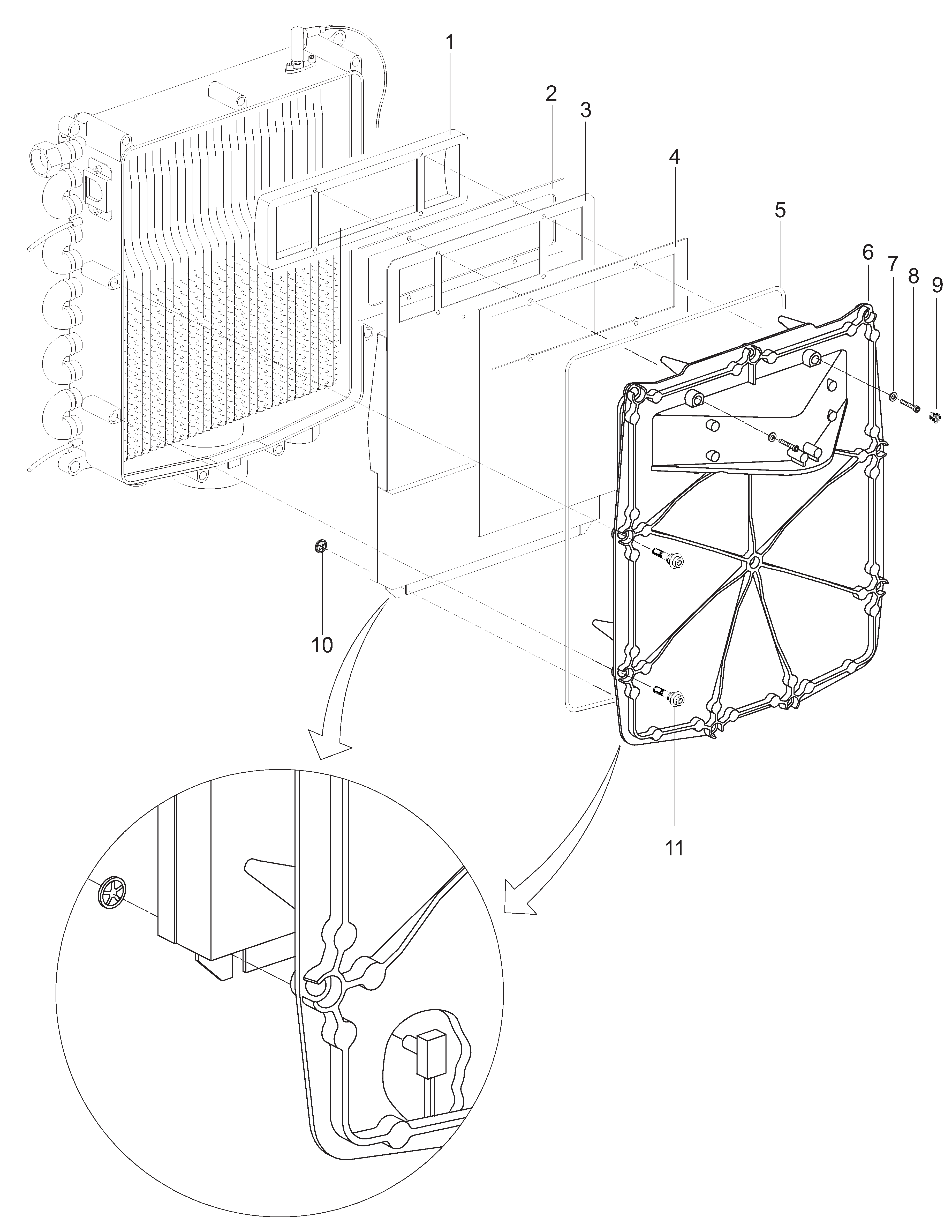

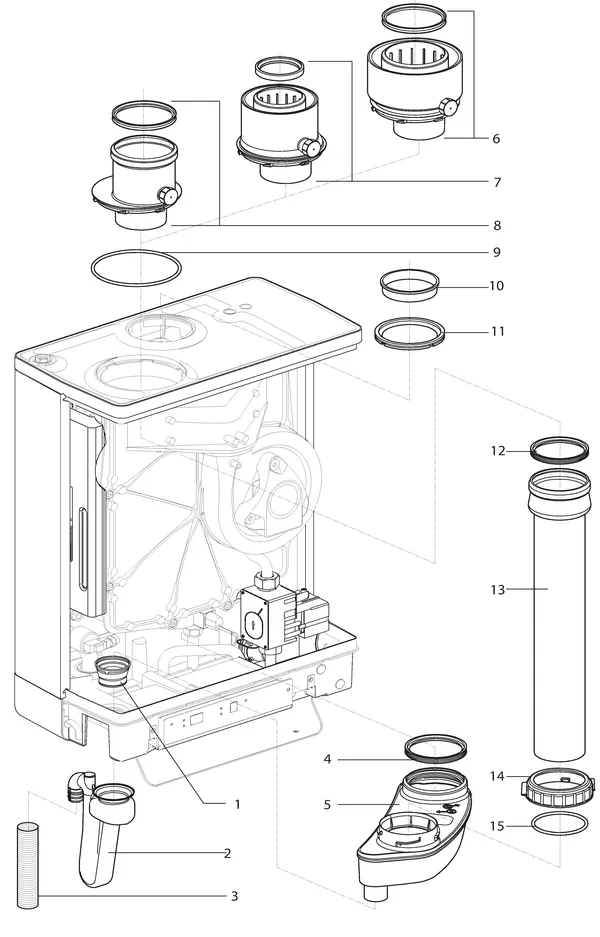

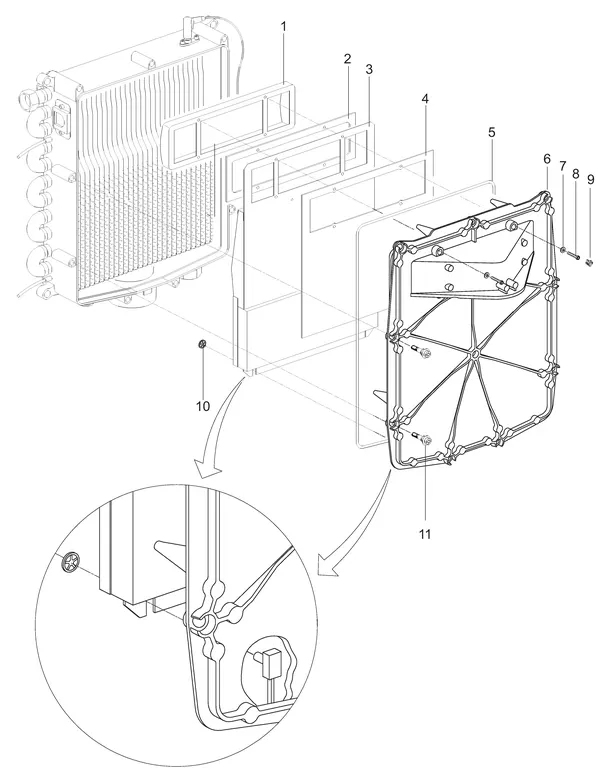

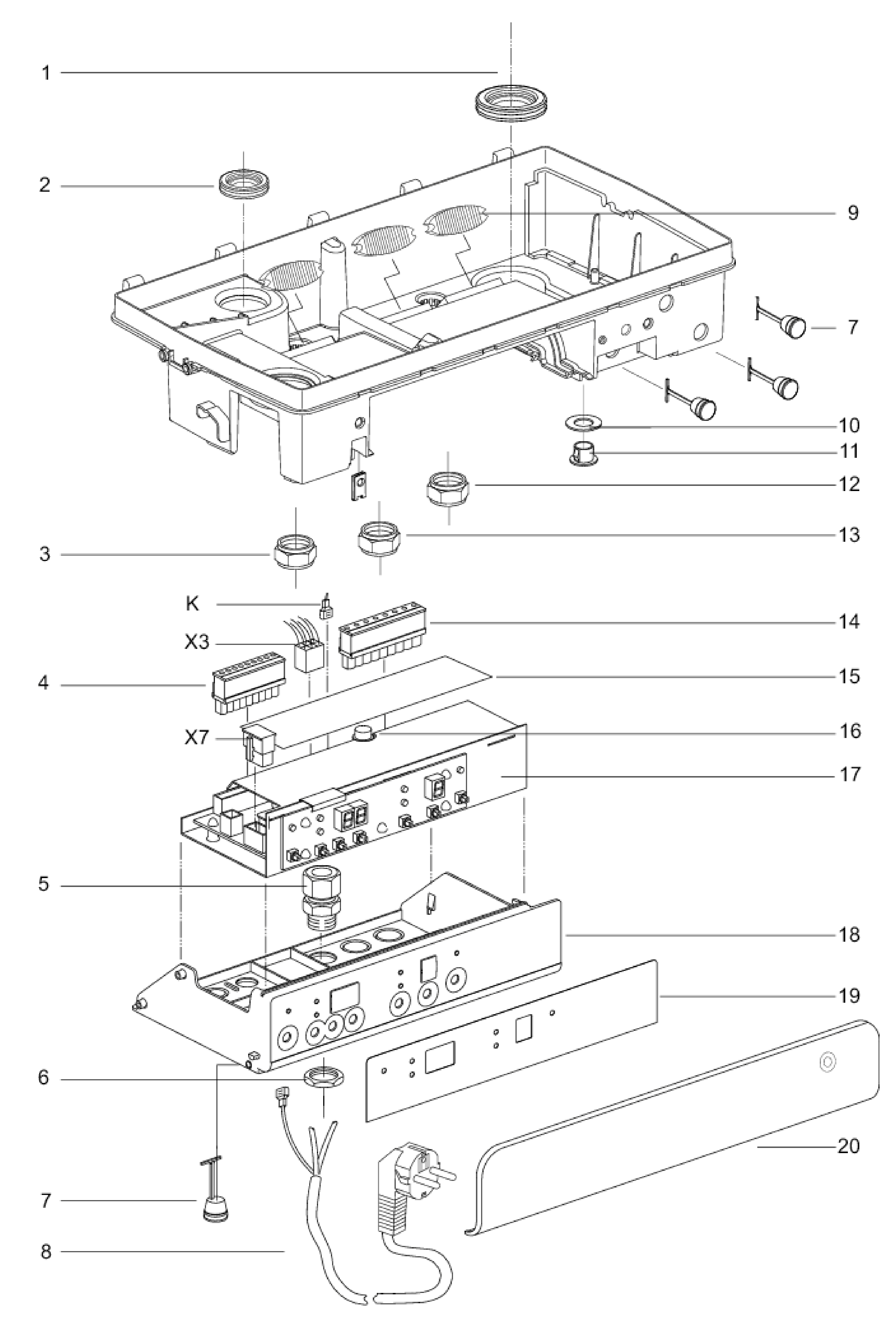

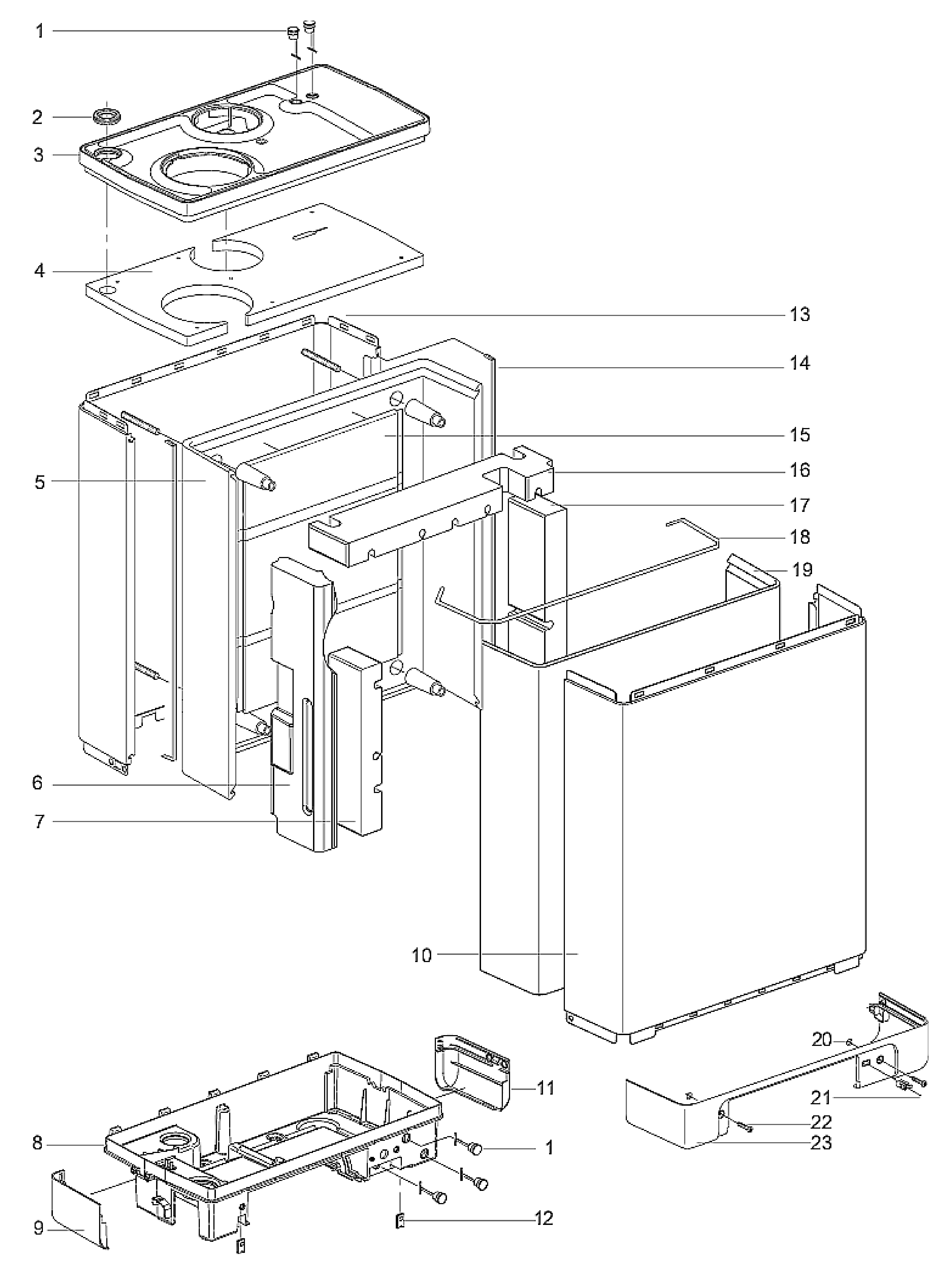

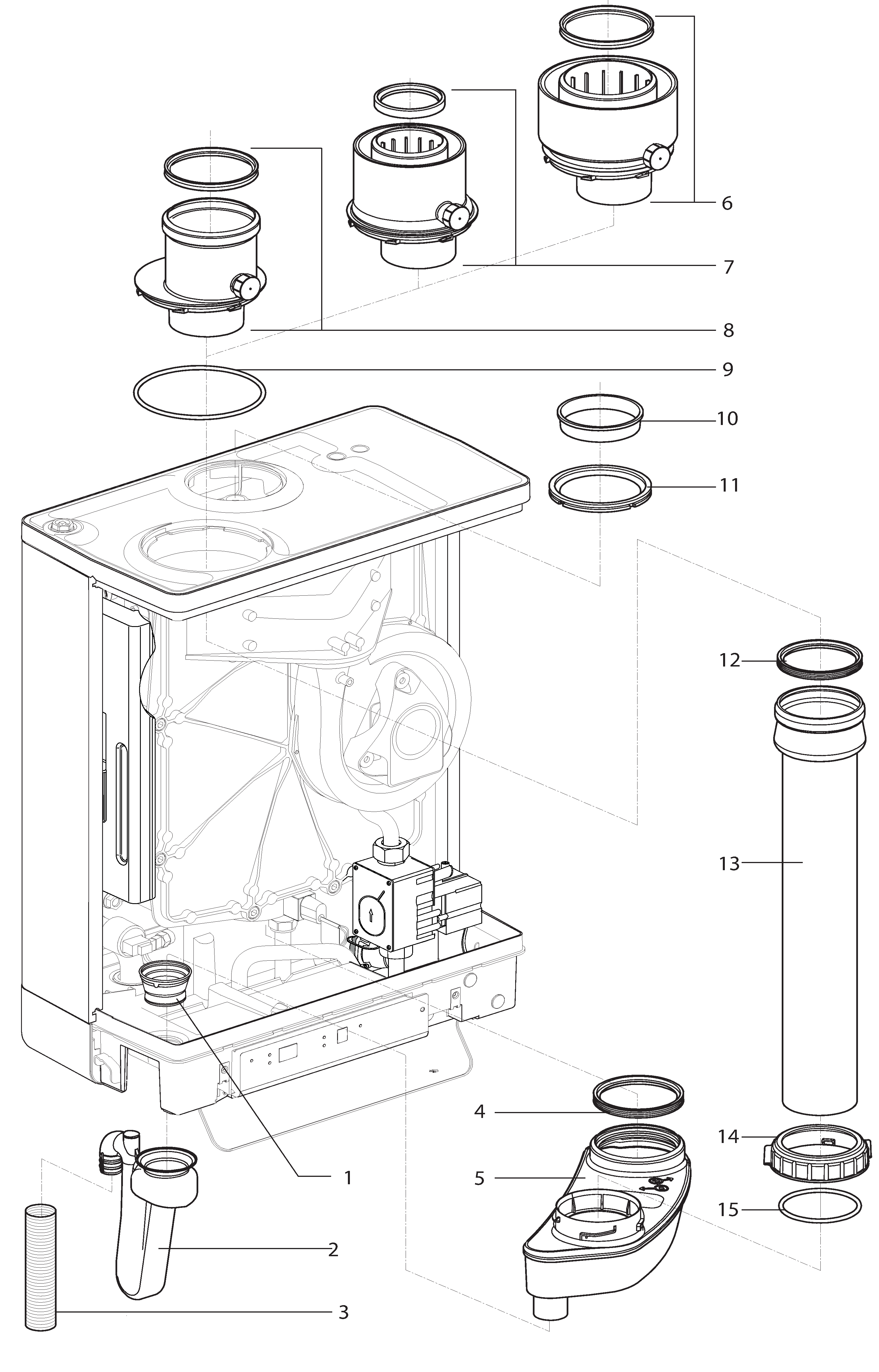

Intergas Kombi Kompakt HReco 30 HR exploded tekening

Intergas Kombi Kompakt HReco 30 HR onderdelen

Op zoek naar onderdelen voor de Intergas Kombi Kompakt HReco 30 HR? Hieronder staan alle 121 originele onderdelen met de bijbehorende exploded tekening, inclusief artikelnummer en prijs — direct te bestellen.

📐 Bekijk de interactieve exploded tekening →
OnderdeelArtikelnr.Prijs
Intergas druksensor CV clip serviceset8063340€37,51Bekijk & bestel
Intergas NTC t.b.v. warmtewisselaar KK8063000€13,31Bekijk & bestel
Intergas afdichtring Ø 24 x Ø 20 x 1.5 mm8063140€0,61Bekijk & bestel
Intergas afdichtring pomp 1"8065070€0,91Bekijk & bestel
Intergas kunststof dop KK Ø 80 mm8063155€1,51Bekijk & bestel
Intergas tand veerring M88065190€0,30Bekijk & bestel
Intergas afdichting ontsteekpen8065201€1,21Bekijk & bestel
Intergas afdichtingsring ventilator8063166€3,03Bekijk & bestel
Intergas afdichtingsring8063187€9,68Bekijk & bestel
Intergas starlock snelborg 4 mm RVS8065245€0,30Bekijk & bestel
Intergas inbusbout M8 x 40 mm (per stuk)8065249€0,91Bekijk & bestel
Intergas afdichtingsring 76 mm8065256€3,33Bekijk & bestel
Intergas kijkglasset met houder KK8065204€8,47Bekijk & bestel
Intergas speednut 4.28065271€1,21Bekijk & bestel
Intergas ontsteekkabel NAC 1:1 l= 700 mm na 20068065292€17,55Bekijk & bestel
Intergas O-ring Ø 15 x 2 mm8063235€0,61Bekijk & bestel
Intergas O-ring Ø 19 x 2 mm8063237€0,61Bekijk & bestel
Intergas ventilator Torin laag model8063292€203,28Bekijk & bestel
Intergas condensbak8063310€53,24Bekijk & bestel
Intergas O-ring Ø 68 x 4 mm condensbak8063324€1,82Bekijk & bestel
Intergas lippenring DN70 x 82 mm8063325€3,33Bekijk & bestel
Intergas ribbelslang DN25 x 21 l= 600 mm8062727€2,42Bekijk & bestel
Intergas sifon HRE8062732€10,89Bekijk & bestel
Intergas afdichtring 21.5/15.5 vlak gas8062736€0,91Bekijk & bestel
Intergas pakking voorplaat / isolatiebak8062739€9,08Bekijk & bestel
Intergas tule sifon8062746€3,63Bekijk & bestel
Intergas rookgasklep set (optioneel) incl. afdichtring en flensmoer8065345€18,15Bekijk & bestel
Intergas adapterset Ø 60/100mm0510112€68,51Bekijk & bestel
Intergas veer branderbout8060521€0,96Bekijk & bestel
Intergas ontluchter 3/8"8063215€3,93Bekijk & bestel
Intergas aansluitkabel 3x1 mm met haakse stekker l= 2 m8063257€8,47Bekijk & bestel
Intergas wartelmoer rookgaskoker8063312€10,29Bekijk & bestel
Intergas O-ring 115 x 4 mm rookgasafdichting8063323€3,33Bekijk & bestel
Intergas bodem HRE8062734€53,24Bekijk & bestel
Intergas wartelmoer kunststof geel8065446€1,82Bekijk & bestel
Intergas wartelmoer kunststof rood8065447€1,82Bekijk & bestel
Intergas wartelmoer kunststof blauw8065448€1,82Bekijk & bestel
Intergas rookgaskoker middel8065452€32,67Bekijk & bestel
Intergas O-ring Ø 6 x 1.5 mm siliconen8065472€0,61Bekijk & bestel
Intergas ventilator set HRE/Eco8065478€203,28Bekijk & bestel
Intergas ontsteekunit (Siemens) TQG43.A2109 SMART HRE na 6/20118060034€22,39Bekijk & bestel
Intergas branderautomaat HReco Honeywell8069016€434,39Bekijk & bestel
Intergas stromingssensor SIKA 1-30 liter HReco HRE 36/30A8069018€73,81Bekijk & bestel
Intergas opvulring stromingssensor8069054€1,51Bekijk & bestel
Intergas NTC kabel Kombi HReco (vanaf augustus 2015)8069072€23,60Bekijk & bestel
Intergas gasblok (vervangingset) Smart HR/HRE/HReco (was 8060023)8069074€219,01Bekijk & bestel
Intergas inbusbout M8 x 40 mm met flens8069088€1,21Bekijk & bestel
Intergas afdichtring Ø 18.5 x Ø 13 x 2 mm Viton8063151€0,91Bekijk & bestel
Intergas afdichting Viton voorplaat middel 700 mm zwart HRE 30 incl. vlakgasring 21.5/15.58061866€10,89Bekijk & bestel
Intergas service set brander Bekaert8062492€243,21Bekijk & bestel
Intergas rookgasadapter 80/80 mm8063341€55,66Bekijk & bestel
Intergas plaatschroef T20 RVS verzonken8065473€0,30Bekijk & bestel
Rewind gereviseerde ventilator Kombi Kompakt HR(E)(Eco)8930245€203,28Bekijk & bestel
Rewind gereviseerde ventilator Kombi Kompakt HR(E)(Eco)8930246€203,28Bekijk & bestel
Intergas wartelmoer 1/2"8065246€3,33Bekijk & bestel
Intergas borgveer NTC warmtewisselaar8065255€1,21Bekijk & bestel
Intergas insert moer M48065203€0,61Bekijk & bestel
Intergas flensmoer M5 met kartelrand8063231€0,61Bekijk & bestel
Intergas inbusbout M4 x 10 mm8063232€0,30Bekijk & bestel
Intergas deksel8062733€67,76Bekijk & bestel
Intergas adapterset Ø 80/125mm0510114€68,51Bekijk & bestel
Intergas doseerventiel 8 liter8060767€15,13Bekijk & bestel
Intergas connector 9-polig 5 mm 24V8065295€8,47Bekijk & bestel
Intergas kwartsluiting mantel8065308€7,26Bekijk & bestel
Intergas zelfborgende moer M88063218€0,30Bekijk & bestel
Intergas venturi8063233€32,67Bekijk & bestel
Intergas veer8063234€0,91Bekijk & bestel
Intergas wartelmoer 3/4"x 0198063238€2,12Bekijk & bestel
Intergas glaszekering 3,15A T F48062717€1,51Bekijk & bestel
Intergas retourbuis HRE8063303€7,87Bekijk & bestel
Intergas zijkap bodemrand links8063306€3,93Bekijk & bestel
Intergas zijkap bodemrand rechts8063307€3,93Bekijk & bestel
Intergas branderautomaat/displayhouder8063308€14,52Bekijk & bestel
Intergas gastoevoerbuis HRE8063317€17,55Bekijk & bestel
Intergas borgveer druksensor8063321€1,82Bekijk & bestel
Intergas antiverliesring8062722€0,30Bekijk & bestel
Intergas sluitschroef mantel8062724€0,30Bekijk & bestel
Intergas dop Ø 12,5 mm met anker8062726€0,61Bekijk & bestel
Intergas pompmoer 1" HRE8062729€6,05Bekijk & bestel
Intergas bevestigingsveer isolatie8062735€1,51Bekijk & bestel
Intergas isolatie boven8062738€14,52Bekijk & bestel
Intergas tule aanvoerbuis8062742€3,03Bekijk & bestel
Intergas tule pomp8062744€3,03Bekijk & bestel
Intergas kabeldoorvoer8062745€1,51Bekijk & bestel
Intergas wartel M16 x 1,5 mm8065419€1,82Bekijk & bestel
Intergas gasmengbuis middel HRE8065441€27,83Bekijk & bestel
Intergas isolatiemantel middel8065449€27,83Bekijk & bestel
Intergas warmwaterbuis HRE vanaf serie nr. 0802....8065451€12,71Bekijk & bestel
Intergas isolatiebak HRE 28/248065454€100,43Bekijk & bestel
Intergas isolatie boven8069045€8,47Bekijk & bestel
Intergas aanvoerbuis middel8069051€72,60Bekijk & bestel
Intergas wartelmoer 1/2"8069053€3,63Bekijk & bestel
Intergas koudwaterbuis HReco8069055€7,87Bekijk & bestel
Intergas warmtewisselaar HReco middel8069057€687,28Bekijk & bestel
Intergas gas lucht module 4068069063€32,67Bekijk & bestel
Intergas gasmengbuis middel L=1118069066€27,83Bekijk & bestel
Intergas connector 8 polig 7,5 mm 230V8069068€8,47Bekijk & bestel
Intergas ventilatorkabel HReco8069071€14,52Bekijk & bestel
Intergas displayklep HReco8069091€16,34Bekijk & bestel
Intergas gasdoseerring 7.80 aardgasset8065488€36,30Bekijk & bestel
Intergas voorplaat middel vervangingsset8066009€199,65Bekijk & bestel
Intergas displayklep wit tbv HRE HReco8065493€16,34Bekijk & bestel
Intergas aardgasset gasdoseerring 645 aardgas G25.38065018€36,30Bekijk & bestel
Intergas frontpaneel mantel middel8064213€153,67Bekijk & bestel
Intergas pakking brander8063165€3,03Bekijk & bestel
Intergas NTC klem Ø 15 mm HRE24/18 CW 3+4+58065434€16,34Bekijk & bestel
Intergas ontst.ionisatiepen KK 2093278063029€13,92Bekijk & bestel
Intergas afdicht profiel L=785 mm 8779178065268€2,12Bekijk & bestel
Intergas isolatie frontpaneel met BIC KK 24-288063336€31,46Bekijk & bestel
Intergas druksensor 864087 .8063320€35,09Bekijk & bestel
Intergas gasblok HRE 2011 8015 278060033€197,23Bekijk & bestel
Intergas aarddraad na 20068063268€0,91Bekijk & bestel
Intergas aardklem8063221€1,51Bekijk & bestel
Intergas achterbak mantel middel8064208€67,76Bekijk & bestel
Intergas afstandbus8062743€3,03Bekijk & bestel
Intergas isolatie wig middel8069037€17,55Bekijk & bestel
Intergas isolatie wisselaar HReco middel links8069040€4,54Bekijk & bestel
Intergas isolatie wisselaar middel8069047€7,87Bekijk & bestel
Intergas moer M16 x 1.58065418€0,61Bekijk & bestel
Intergas pomp Yonos Para 15/7 130mm 230V8069017€266,20Bekijk & bestel
Intergas sticker display HReco8069069€14,52Bekijk & bestel
