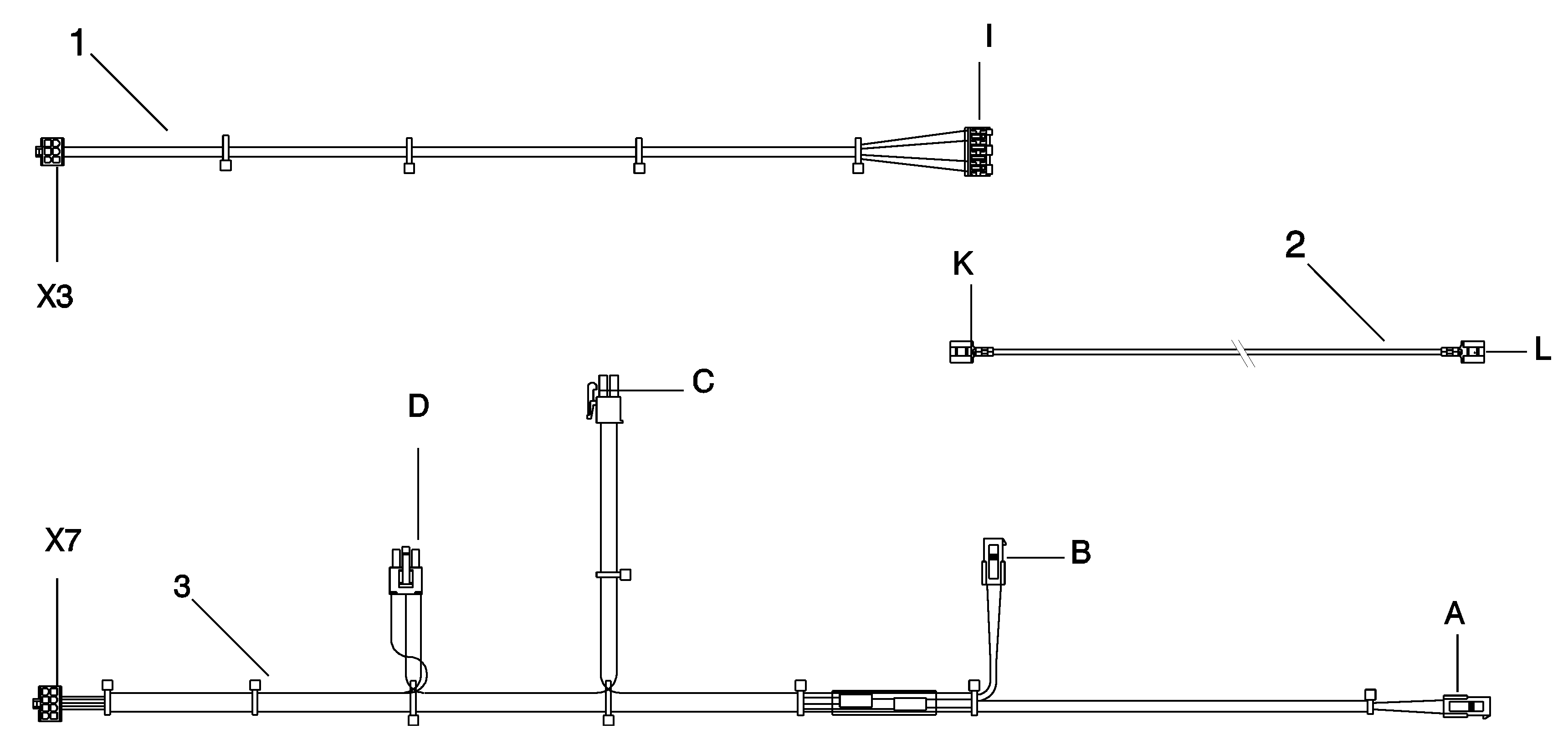

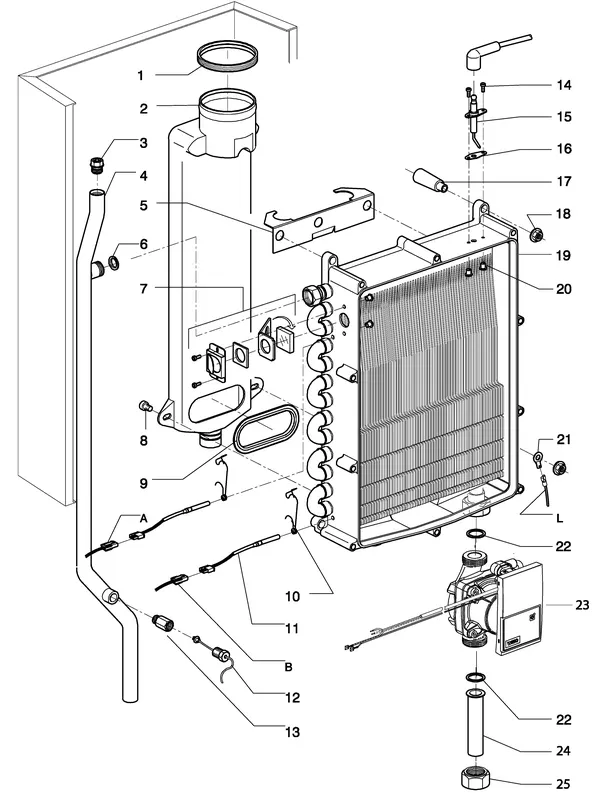

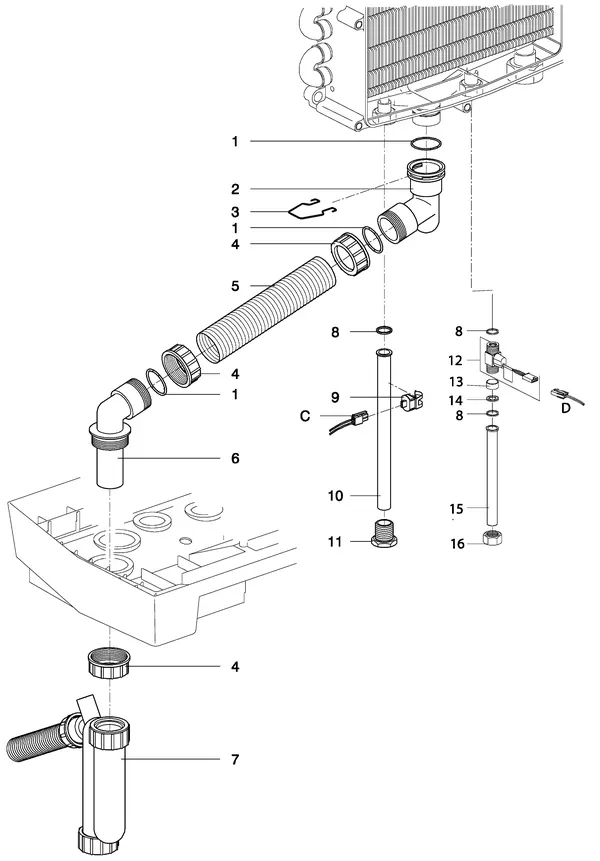

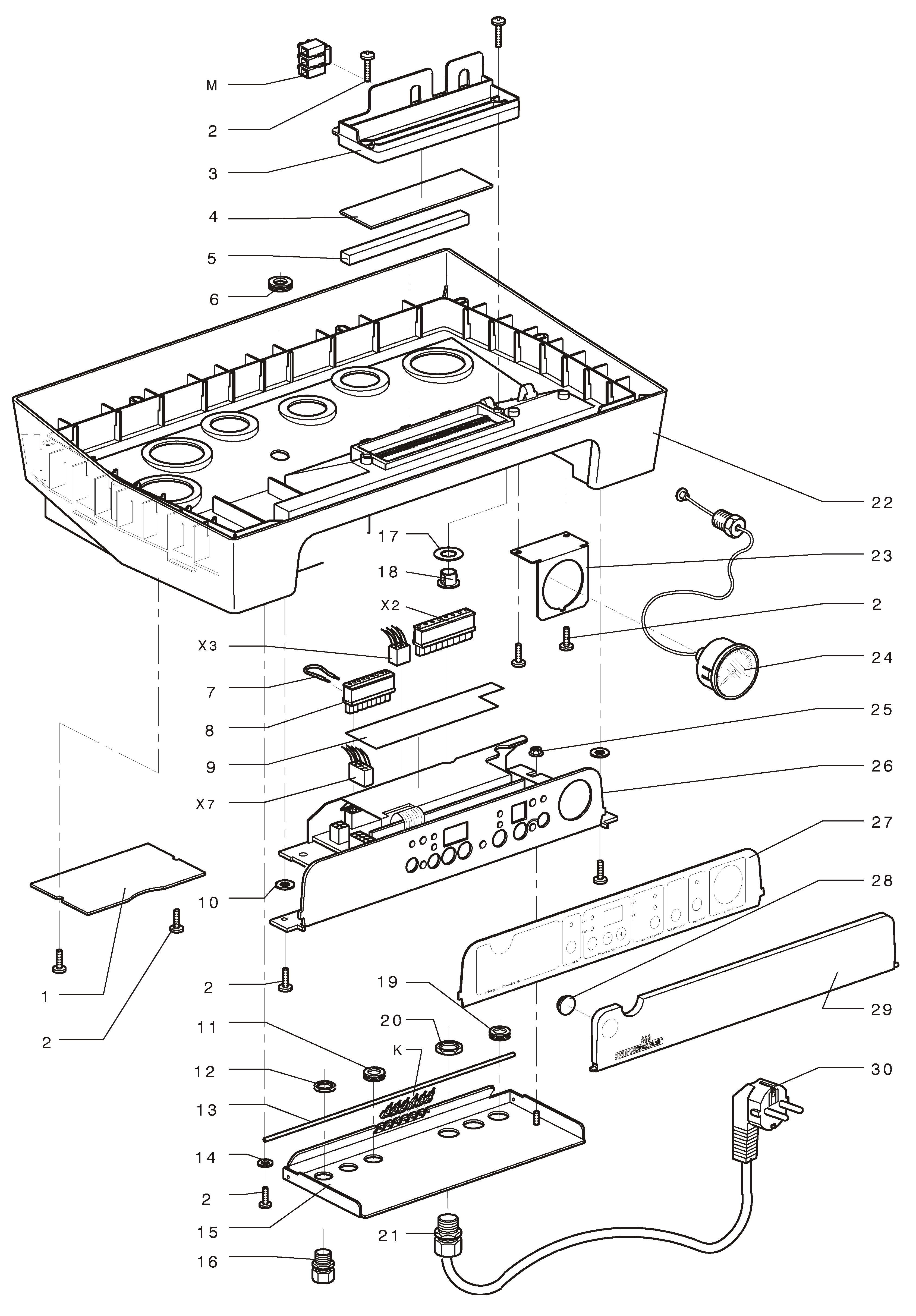

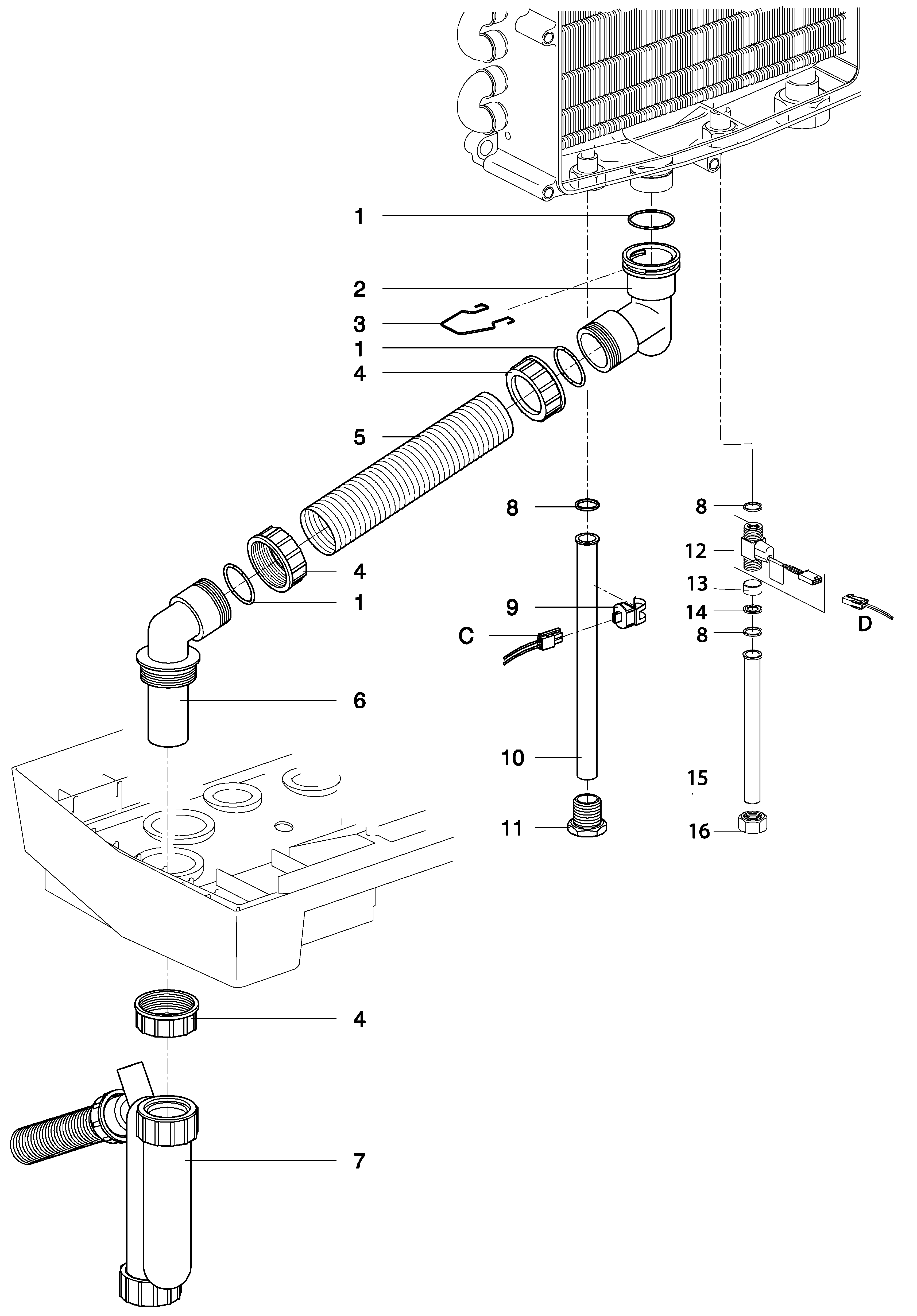

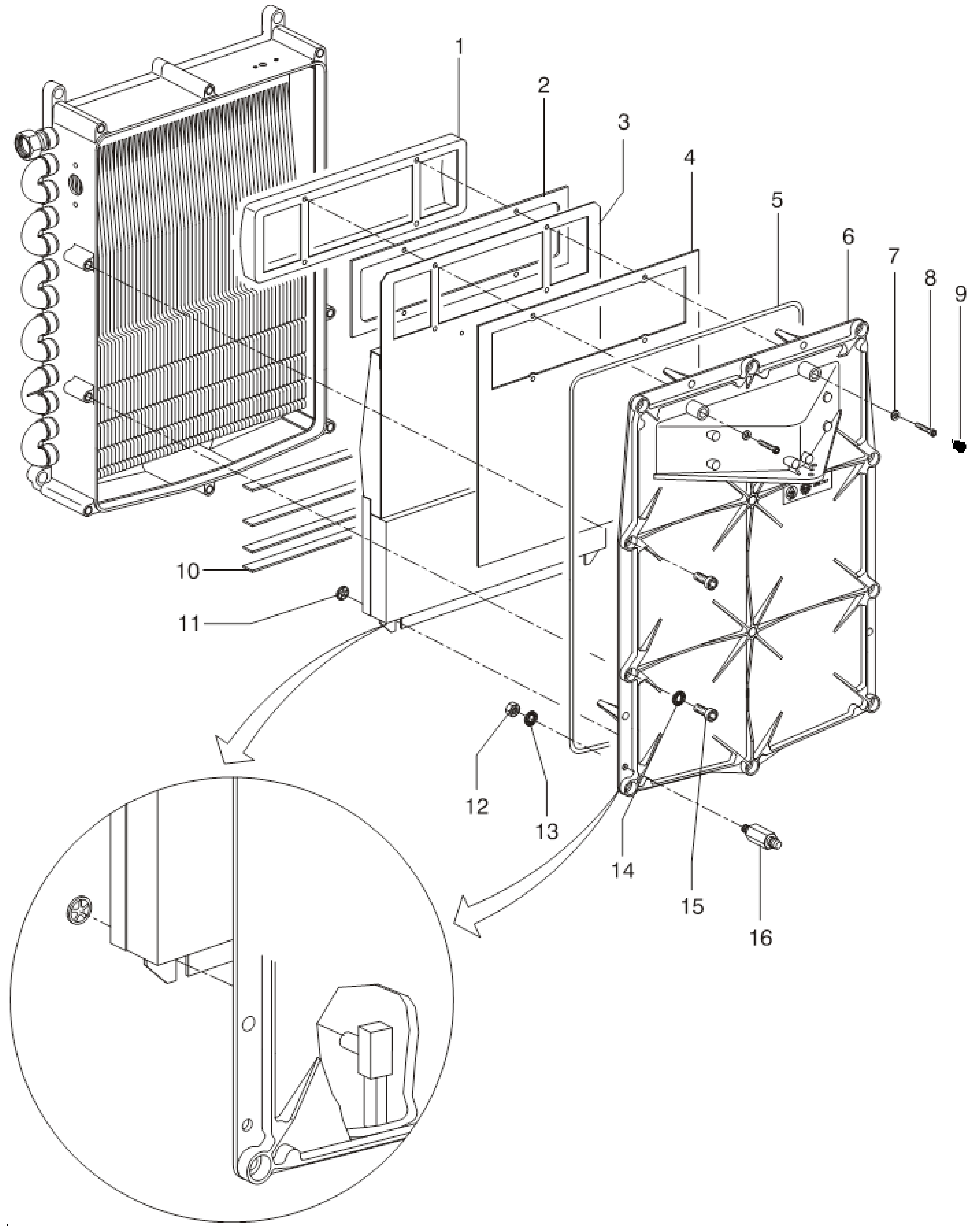

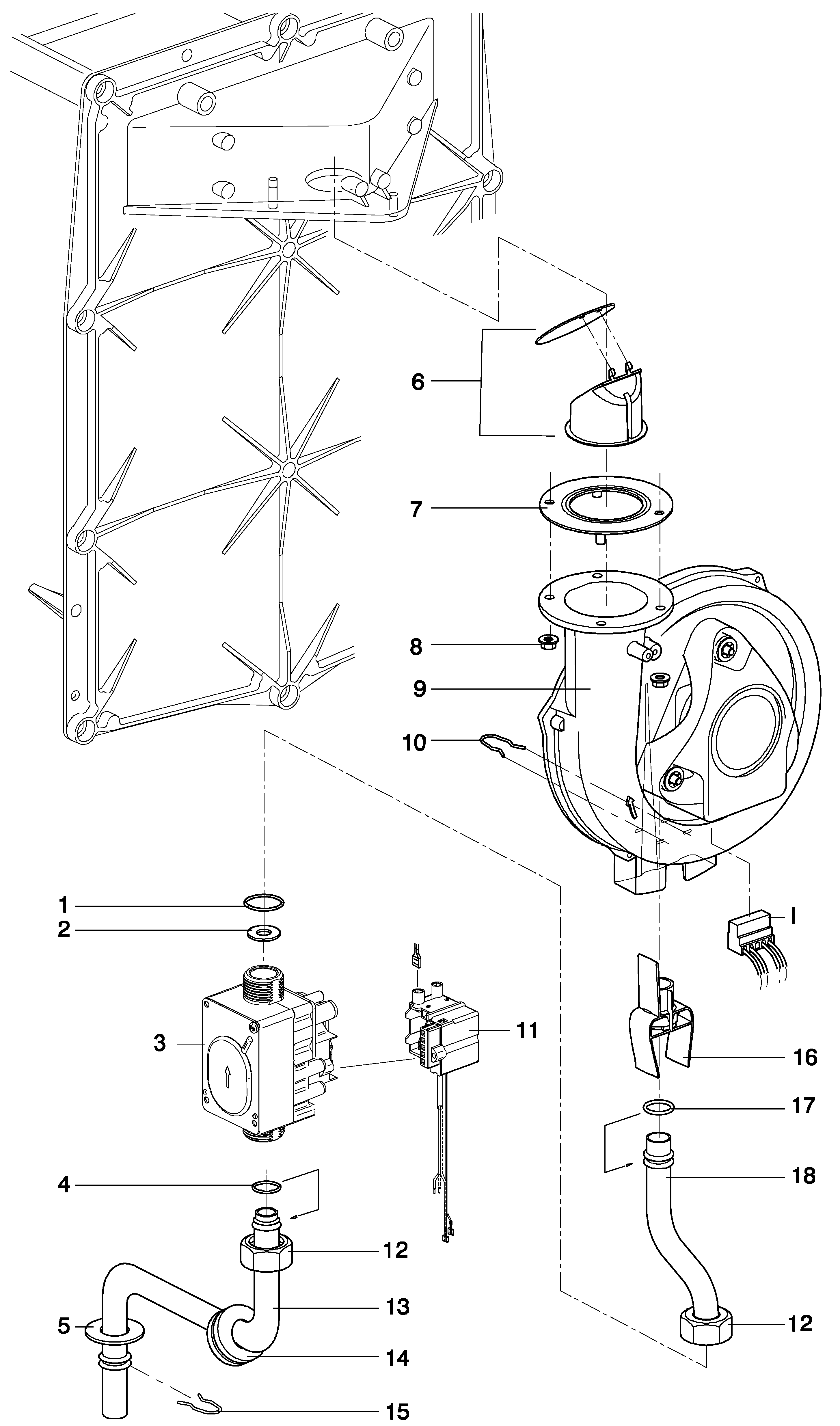

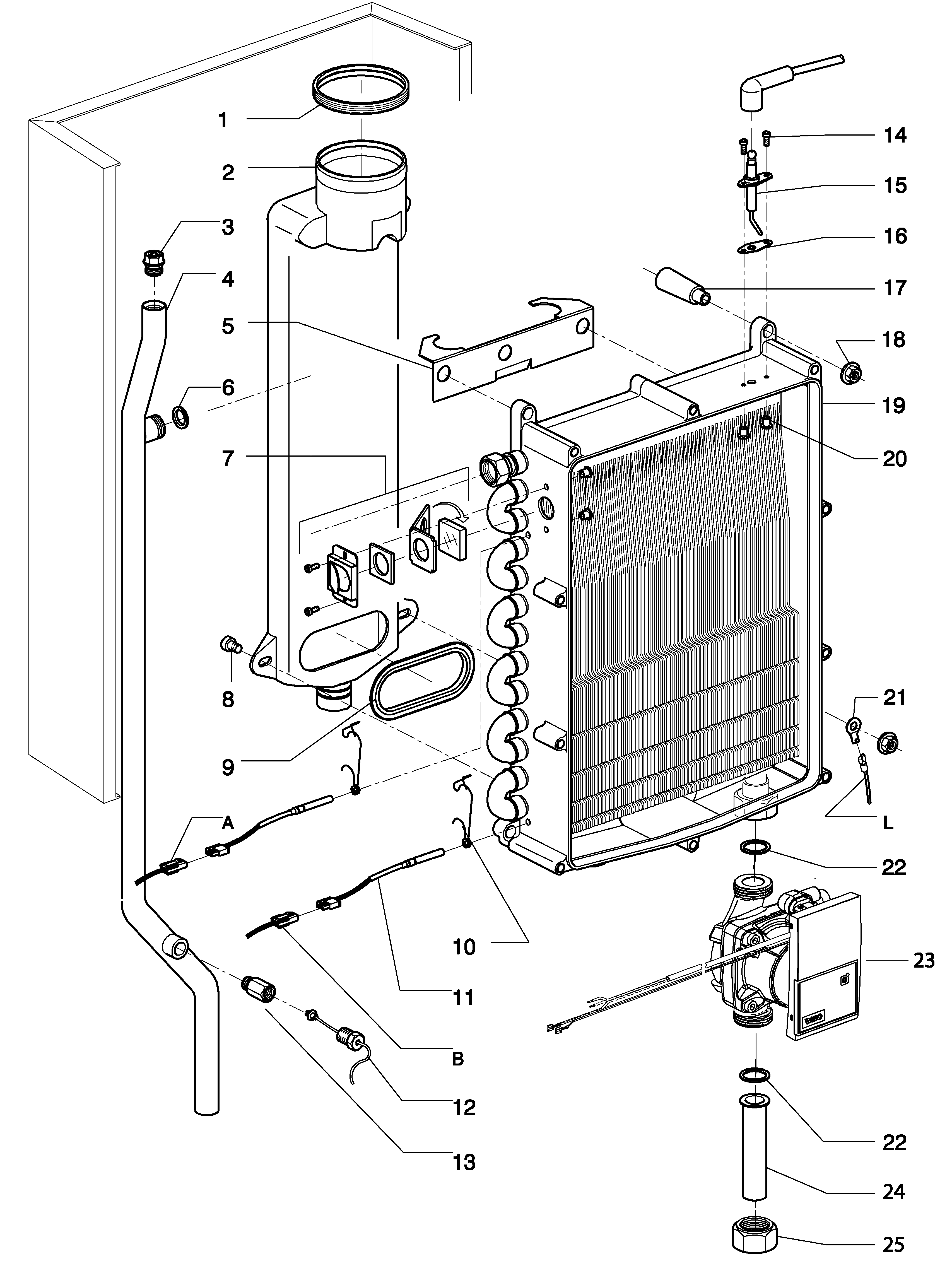

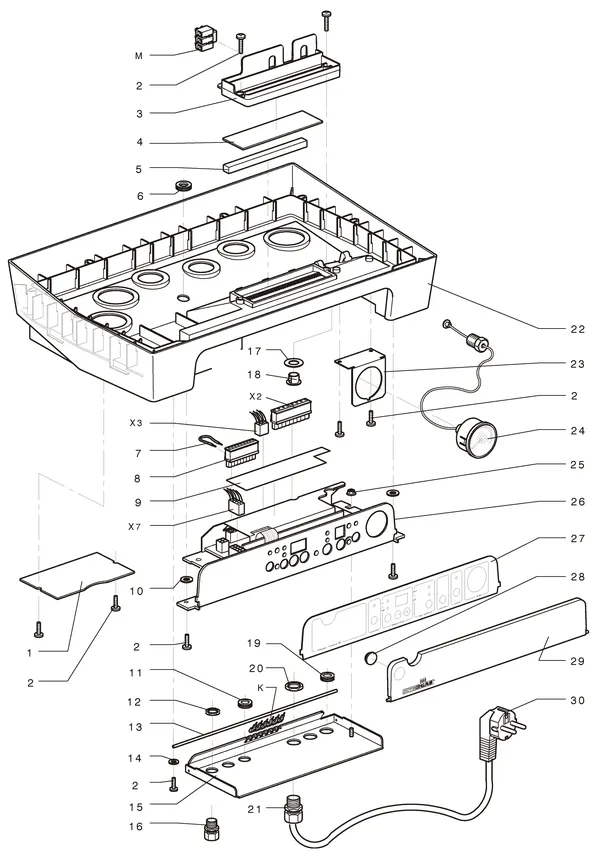

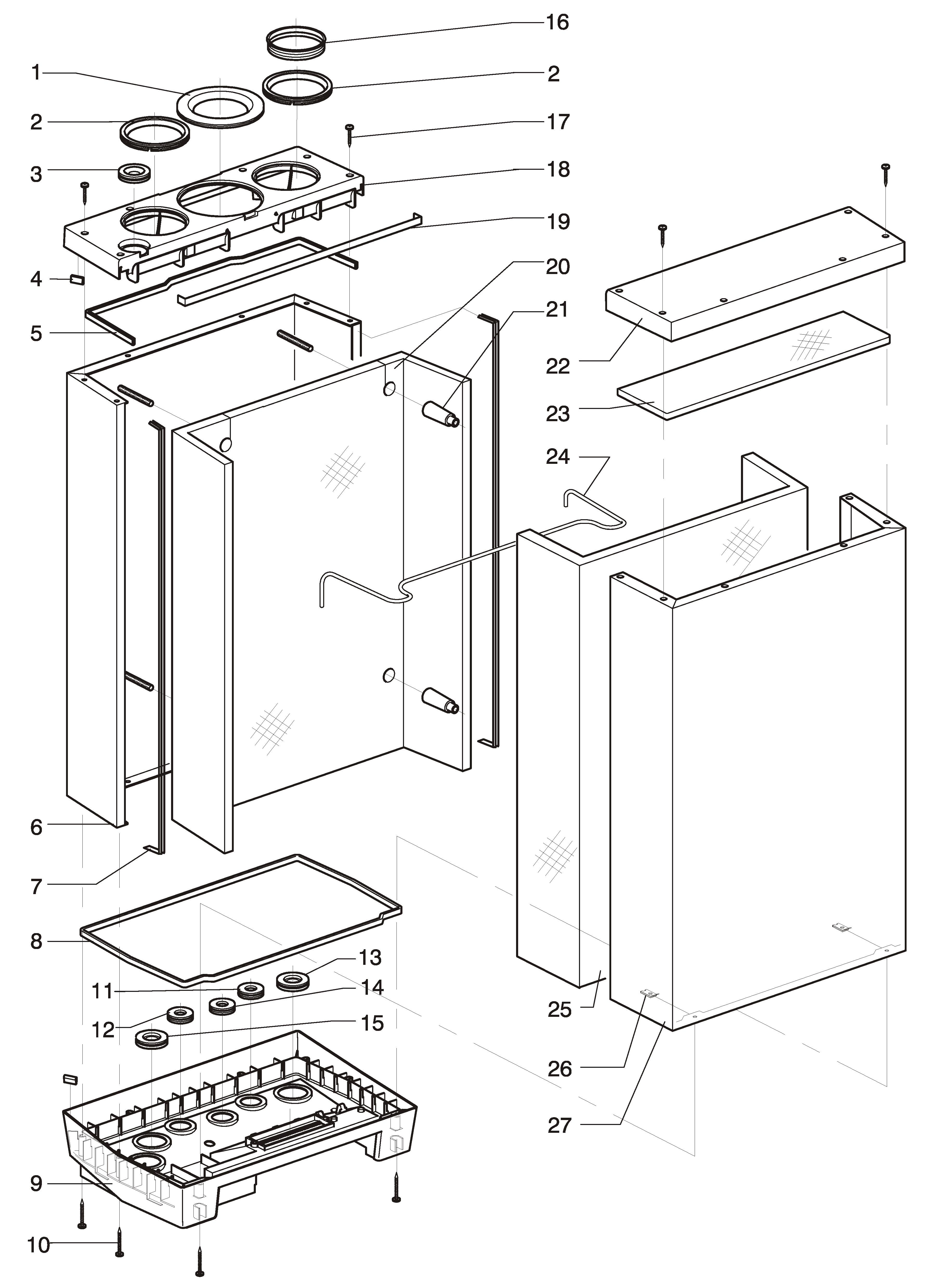

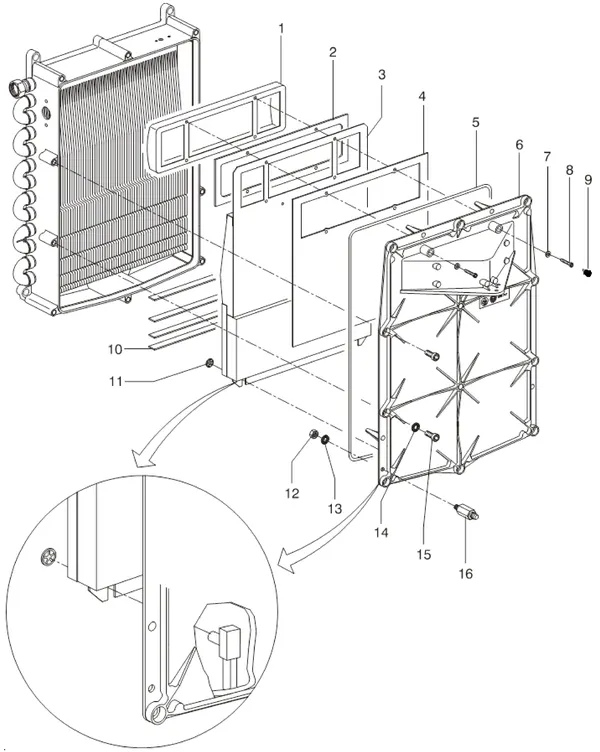

Intergas Kombi Kompakt HR 28/24A exploded tekening

Intergas Kombi Kompakt HR 28/24A onderdelen

Op zoek naar onderdelen voor de Intergas Kombi Kompakt HR 28/24A? Hieronder staan alle 123 originele onderdelen met de bijbehorende exploded tekening, inclusief artikelnummer en prijs — direct te bestellen.

📐 Bekijk de interactieve exploded tekening →
OnderdeelArtikelnr.Prijs
Intergas NTC t.b.v. warmtewisselaar KK8063000€13,31Bekijk & bestel
Intergas afdichtring Ø 24 x Ø 20 x 1.5 mm8063140€0,61Bekijk & bestel
Intergas afdichtring pomp 1"8065070€0,91Bekijk & bestel
Intergas kunststof dop KK Ø 80 mm8063155€1,51Bekijk & bestel
Intergas tand veerring M88065190€0,30Bekijk & bestel
Intergas afdichting ontsteekpen8065201€1,21Bekijk & bestel
Intergas bovenplaat KK achter compleet8065225€33,88Bekijk & bestel
Intergas afdichtingsring ventilator8063166€3,03Bekijk & bestel
Intergas afdichtingsring8063187€9,68Bekijk & bestel
Intergas starlock snelborg 4 mm RVS8065245€0,30Bekijk & bestel
Intergas inbusbout M8 x 40 mm (per stuk)8065249€0,91Bekijk & bestel
Intergas O-ring Ø 28,25 x 2,62 mm8065241€0,61Bekijk & bestel
Intergas kijkglasset met houder KK8065204€8,47Bekijk & bestel
Intergas speednut 4.28065271€1,21Bekijk & bestel
Intergas stuwstrip RVS 28 kW8065282€2,72Bekijk & bestel
Intergas O-ring Ø 15 x 2 mm8063235€0,61Bekijk & bestel
Intergas O-ring Ø 19 x 2 mm8063237€0,61Bekijk & bestel
Intergas afdichtring 21.5/15.5 vlak gas8062736€0,91Bekijk & bestel
Intergas rookgasklep set (optioneel) incl. afdichtring en flensmoer8065345€18,15Bekijk & bestel
Intergas veer branderbout8060521€0,96Bekijk & bestel
Intergas sifon8062701€13,31Bekijk & bestel
Intergas ontluchter 3/8"8063215€3,93Bekijk & bestel
Intergas aansluitkabel 3x1 mm met haakse stekker l= 2 m8063257€8,47Bekijk & bestel
Intergas O-ring Ø 6 x 1.5 mm siliconen8065472€0,61Bekijk & bestel
Intergas ventilator set HRE/Eco8065478€203,28Bekijk & bestel
Intergas ontsteekunit (Siemens) TQG43.A2109 SMART HRE na 6/20118060034€22,39Bekijk & bestel
Intergas stromingssensor SIKA 1-30 liter HReco HRE 36/30A8069018€73,81Bekijk & bestel
Intergas opvulring stromingssensor8069054€1,51Bekijk & bestel
Intergas afdichtring Ø 18.5 x Ø 13 x 2 mm Viton8063151€0,91Bekijk & bestel
Intergas branderautomaat IC3HR BIC vervangingsset8065492€434,39Bekijk & bestel
Intergas afdichting Viton voorplaat middel 700 mm zwart HRE 30 incl. vlakgasring 21.5/15.58061866€10,89Bekijk & bestel
Intergas service set brander Bekaert8062492€243,21Bekijk & bestel
Intergas voorplaat set 22 kW Kompakt 1:18066011€274,67Bekijk & bestel
Intergas rookgaskoker afdichting vervangingsset8065284€9,08Bekijk & bestel
Intergas pomp Wilo Para 15-130 /6 PWM (HRE vanaf aug-2015)8069566€292,82Bekijk & bestel
Intergas onderhoudsset 3 voor CW4 toestellen3299062€32,07Bekijk & bestel
Intergas plaatschroef T20 RVS verzonken8065473€0,30Bekijk & bestel
Rewind gereviseerde ventilator Kombi Kompakt HR(E)(Eco)8930246€203,28Bekijk & bestel
Intergas aanvoerbuis KK8063080€70,18Bekijk & bestel
Intergas manometer Imit KK8063110€19,97Bekijk & bestel
Intergas waterslot manometer KK8063120€5,45Bekijk & bestel
Intergas O-ring 7,65 x 1,78 mm t.b.v. NTC KK8063011€0,61Bekijk & bestel
Intergas pakking voorplaat8065243€9,08Bekijk & bestel
Intergas wartelmoer 1/2"8065246€3,33Bekijk & bestel
Intergas inbusboutjes M8 x 20 mm8065248€0,91Bekijk & bestel
Intergas borgveer NTC warmtewisselaar8065255€1,21Bekijk & bestel
Intergas borgveer t.b.v condensafvoer8065261€1,21Bekijk & bestel
Intergas wartelmoer sifon8063041€1,82Bekijk & bestel
Intergas rookgas koker8065221€84,70Bekijk & bestel
Intergas koppelstuk sifon KK8063031€4,84Bekijk & bestel
Intergas klep display8063198€12,10Bekijk & bestel
Intergas pompmoer 1"8061435€3,03Bekijk & bestel
Intergas retourbuis Kompakt8065277€7,87Bekijk & bestel
Intergas koppelstuk8063022€5,75Bekijk & bestel
Intergas bovenplaat KK8065224€16,94Bekijk & bestel
Intergas insert moer M48065203€0,61Bekijk & bestel
Intergas flensmoer M5 met kartelrand8063231€0,61Bekijk & bestel
Intergas inbusbout M4 x 10 mm8063232€0,30Bekijk & bestel
Intergas sluitring bevestigings bout brander8063243€0,30Bekijk & bestel
Intergas afwaterstop8063284€0,91Bekijk & bestel
Intergas ribbelslang condensafvoer8065278€1,82Bekijk & bestel
Intergas doseerventiel 8 liter8060767€15,13Bekijk & bestel
Intergas lipring 80mm KK8063186€11,50Bekijk & bestel
Intergas isolatiebovenplaat KK8063193€6,66Bekijk & bestel
Intergas wisselaar KK 228065254€654,61Bekijk & bestel
Intergas isolatiebak8065211€88,33Bekijk & bestel
Intergas plaatschroef8065272€0,30Bekijk & bestel
Intergas connector 9-polig 5 mm 24V8065295€8,47Bekijk & bestel
Intergas doorvoertule 15mm blauw8063201€2,12Bekijk & bestel
Intergas onderbak metallic8063202€60,50Bekijk & bestel
Intergas doorvoertule 15mm rood8063203€2,12Bekijk & bestel
Intergas doorvoertule 15mm geel8063207€2,12Bekijk & bestel
Intergas doorvoertule 22mm rood8063208€3,03Bekijk & bestel
Intergas zelfborgende moer M88063218€0,30Bekijk & bestel
Intergas veer8063234€0,91Bekijk & bestel
Intergas wartelmoer 3/4"x 0198063238€2,12Bekijk & bestel
Intergas Plastite 45° laagbolkopschroef Ø3.5 x 10 mm8063252€0,30Bekijk & bestel
Intergas doorvoertule 22mm blauw8063259€3,03Bekijk & bestel
Intergas viltring afwaterstop8063283€0,61Bekijk & bestel
Intergas sticker display BIC3008063291€12,71Bekijk & bestel
Intergas wartel M16 x 1,5 mm8065419€1,82Bekijk & bestel
Intergas gastoevoerbuis l=75mm na serie nr. 051128579258065433€14,52Bekijk & bestel
Intergas wartelmoer 1/2"8069053€3,63Bekijk & bestel
Intergas gas lucht module 3628069064€32,67Bekijk & bestel
Intergas ventilatorkabel HReco8069071€14,52Bekijk & bestel
Intergas gasmengbuis l=86,5 mm8065485€25,41Bekijk & bestel
Intergas aardgasset (gasdoseerring 705) tbv aardgas G25.38065019€36,30Bekijk & bestel
Intergas afd. rookgaskoker 877 8178065259€5,14Bekijk & bestel
Intergas pakking brander8063165€3,03Bekijk & bestel
Intergas NTC klem Ø 15 mm HRE24/18 CW 3+4+58065434€16,34Bekijk & bestel
Intergas ontst.ionisatiepen KK 2093278063029€13,92Bekijk & bestel
Intergas afdichtingsring 80mm 8781778065257€3,33Bekijk & bestel
Intergas imbusbout M8 x 12 305 1178063216€0,61Bekijk & bestel
Intergas afdichtband KK8063192€1,51Bekijk & bestel
Intergas afdichtingsprofiel8065266€3,33Bekijk & bestel
Intergas isolatie achterbak8060001€22,99Bekijk & bestel
Intergas isolatie voor mantel KK28/248065426€25,41Bekijk & bestel
Intergas frontpaneel HR228065252€52,03Bekijk & bestel
Intergas Inbusboutje M4x20 rvs8065260€2,72Bekijk & bestel
Intergas afdichtprofiel8063190€3,93Bekijk & bestel
Intergas bevestigingsveer8063194€3,03Bekijk & bestel
Intergas magneet8065054€1,21Bekijk & bestel
Intergas doorvoertule 878067 .8063188€2,72Bekijk & bestel
Intergas gasblok HRE 2011 8015 278060033€197,23Bekijk & bestel
Intergas aarddraad na 20068063268€0,91Bekijk & bestel
Intergas aardklem8063221€1,51Bekijk & bestel
Intergas achterbak mantel8065214€61,71Bekijk & bestel
Intergas afdichtingsprofiel L = 21,5mm8063189€0,61Bekijk & bestel
Intergas afdichtprofiel kabeldoorvoer8063272€0,61Bekijk & bestel
Intergas afstandbus8063211€3,03Bekijk & bestel
Intergas borgpen branderautomaat8063247€4,84Bekijk & bestel
Intergas borgplaat kunststof8065461€7,87Bekijk & bestel
Intergas doorvoertule blind 15mm8063285€1,21Bekijk & bestel
Intergas doorvoertule blind8063205€1,51Bekijk & bestel
Intergas doorverbinder geel8063274€0,61Bekijk & bestel
Intergas doorvoerenplaat8065468€11,50Bekijk & bestel
Intergas moer M16 x 1.58065418€0,61Bekijk & bestel
Intergas moer PG78063278€0,30Bekijk & bestel
Intergas pomp Yonos Para 15/7 130mm 230V8069017€266,20Bekijk & bestel
Intergas scharnierpen l=237mm8063279€0,61Bekijk & bestel
Intergas sluitring 20 x 37 x 0,9 mm8063240€1,51Bekijk & bestel
Intergas sluitring M48063253€0,30Bekijk & bestel
Intergas wartel PG78063282€2,12Bekijk & bestel
